Which wet end seal for my pump, and how do I replace it?
The wet end seal or shaft seal, as the name suggests, provides a waterproof seal between the hydraulic and electrical parts of a spa pump. It is therefore placed between the shaft and the pump body to prevent any leaks.
A leak from the wet end can easily be mistaken for a leak from a union or a gasket on the pump body. You need to figure out the exact origin of the leak to determine the cause. If water is leaking from the back of the pump body, your wet end is likely defective.
With the right tools, replacing this part is not complicated and does not require a professional. Our team will explain the steps to take to replace your pump's wet end seal in a video!

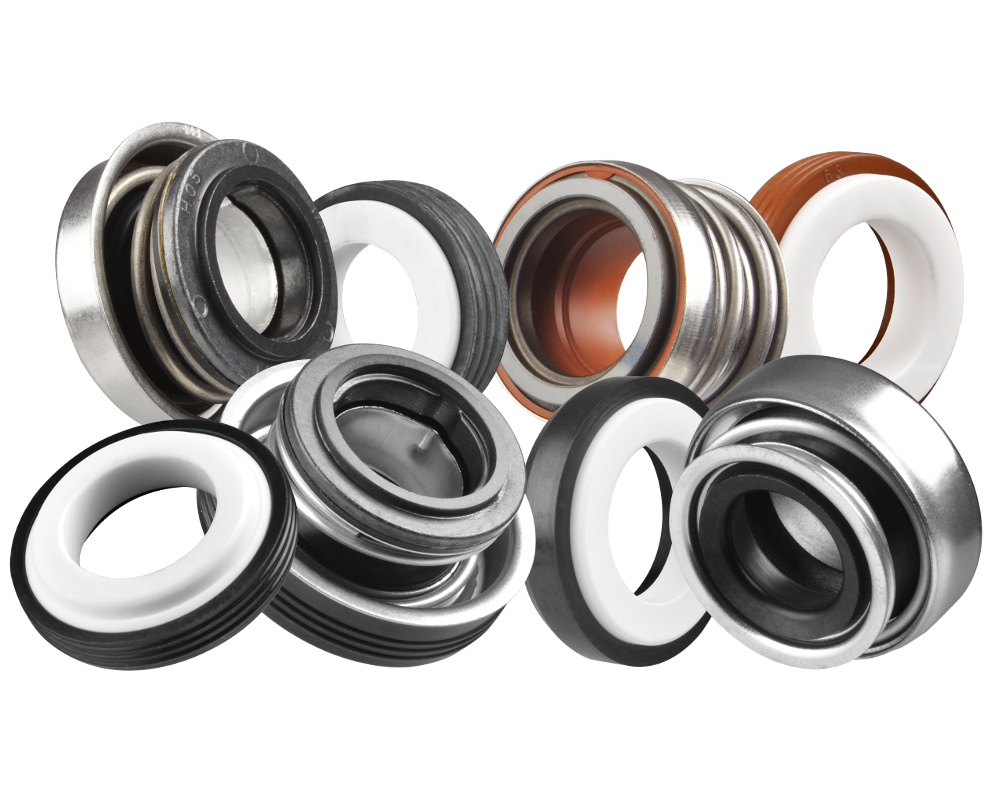

Find the right wet end seal
If you are not sure that you have correctly identified the pump and therefore the correct replacement for your wet end seal, refer to our table below. We have listed all the wet end seals we have classified by size (in millimetres), as well as their compatible pumps. You will certainly find the wet end seal you are looking for. If not, please do not hesitate to contact us.

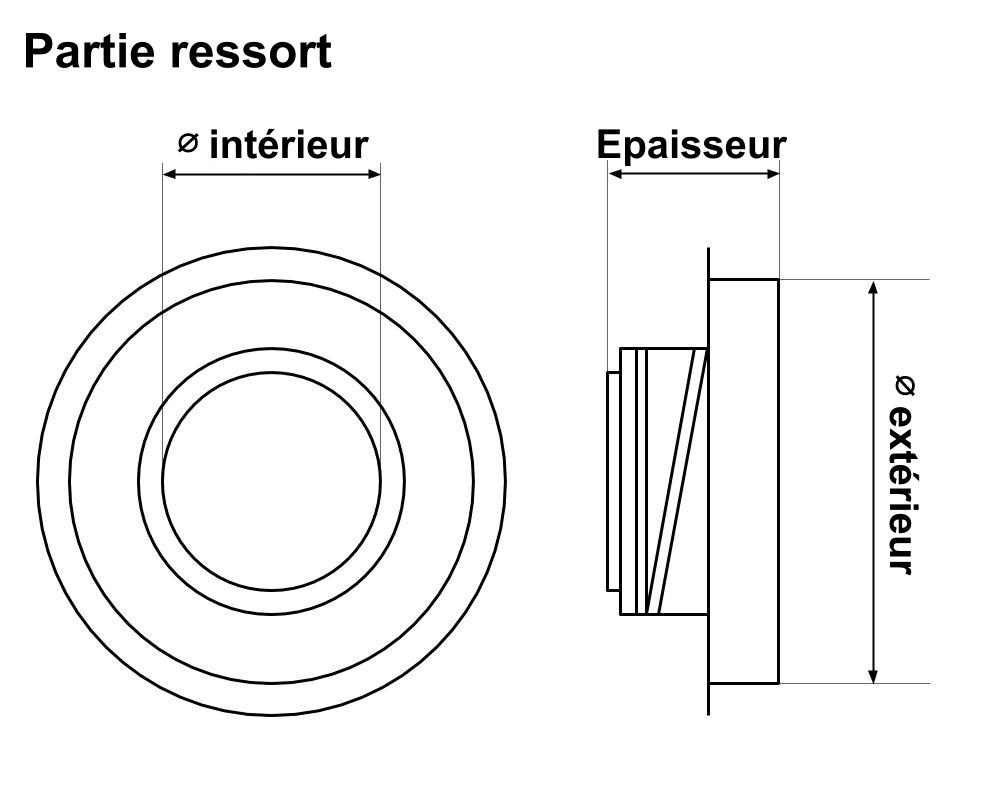

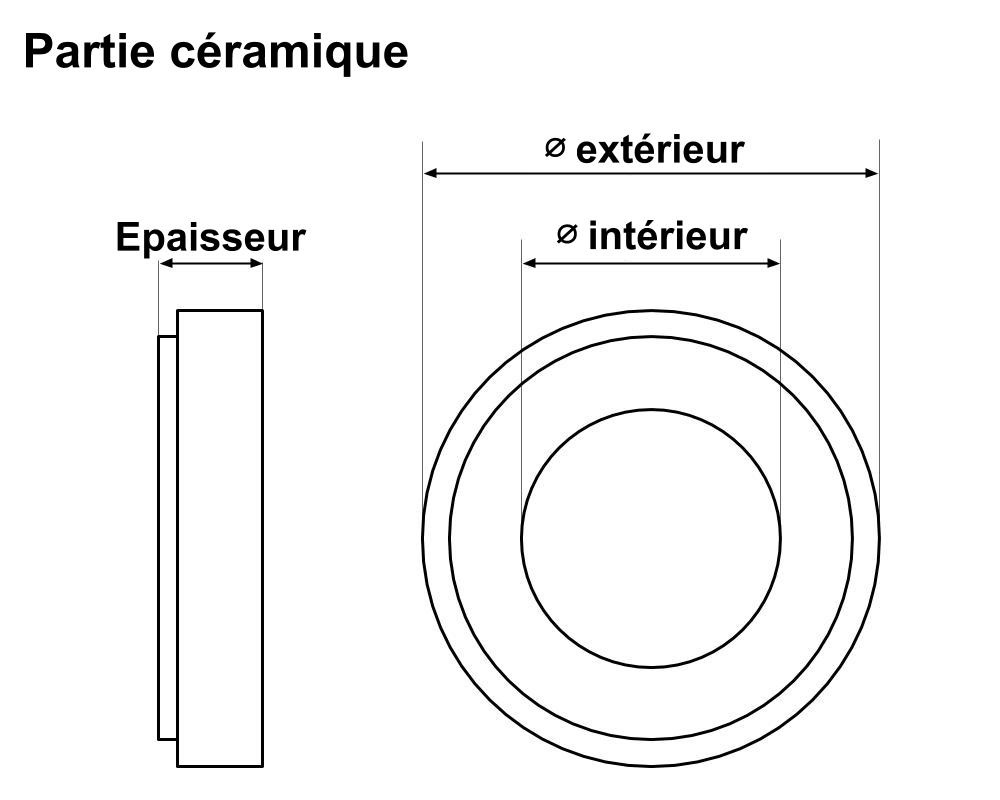

|Ceramic ring||Spring||Compatible pumps|
|PS-671||22,6||10,5||4,2||28,8||10,4||11,7||Waterway Tiny Might|
|16,1||SIREM PB1C80L1B single and two-speed (after 07/2018)|
|Simaco SAM 21-3||26,5||12,9||8||24,1||8,1||14,1||Simaco SAM 21-3|
|Espa||29,7||15,9||8,1||32,0||14,0||16,8||Espa Wiper3 single and two-speed, Wiper0|
|SIREM 4200161101E||30,5||16,9||8,0||32,2||14,7||17,0||SIREM two-speed (before 07/2018)|
|Waterway 319-3090B||32,0||16,8||10,4||30,0||16,4||18,9||Waterway E-series single and two-speed, Viper single and two-speed, Spa Flo and Iron Might (2015+), Spa Flo II, Hi-Flo II|
|PS-1000||32,2||17,1||10,2||36,6||17,5||19,8||Waterway Executive (single and two-speed), Hi-Flo (single and two-speed), Iron Might (Pre 2015), HydroAir HA440NG single and two-speed, HA460, HA350|
|PS-3865R||32,2||17,1||10,2||36,6||17,5||19,8||Waterway Executive (single and two-speed), Hi-Flo (single and two-speed), Iron Might (Pre 2015), HydroAir HA440NG single and two-speed, HA460, HA350|
|PS-200||32,2||17,1||10,2||30,9||15,5||20,5||Aqua-Flo XP2, XP2e single and two-speed, XP3, Circ-Master CP, HP and XP|
|1213004||34||20,0||10,5||34,0||19,0||20,0||Balboa 1030025, Varimax, DuraJet single and two-speed|
|PS-201||35,3||20,0||10,3||34,2||19,2||21,2||Jacuzzi Magnum, RC-Series, Sta-Rite DJ/JS/JT, Dura-Glas II, Dura-Jet, Dyna-Jet|
|GM-210||35,4||18,8||9,1||41,5||17,8||20,3||LX Whirlpool JA35, JA50, JA75, JA100, JA120, JA150, JA200, LP200, LP250, LP300, WP200-II, WP250-II, WP300-II, EA350, EA450, TDA35, TDA50, TDA75, TDA100, TDA200, WTC50M|
|56WUA500||35,4||19,0||8,8||41,3||17,7||20,3||LX Whirlpool WP500-II|
|SpaPower SB16SP||35,4||19,0||9,2||41,5||17,6||20,5||SpaPower single and two-speed|
|Simaco||42,5||21,0||7,9||39,1||18,4||15,0||Simaco SAM2 single and two-speed|
|19,9||16,3||34,2||19,2||22,2||Balboa Niagara single and two-speed, Ultima, Vico, SuperFlo et UltraFlo|
