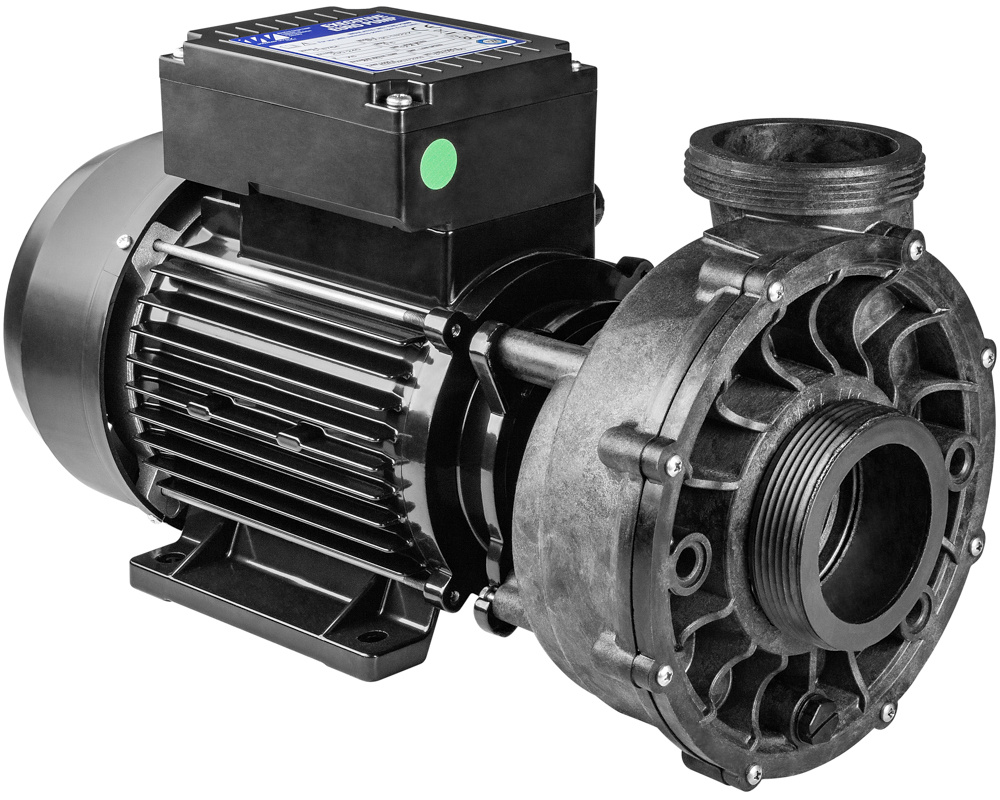

Waterway Viper single-speed pump
The Waterway Viper single-speed pump is used by many spa brands, for massage jets and to generage a fast-moving current in swim spas. It has a 3.0 HP EMG Italian-made water-resistant motor and a high-performance wet end with a 5.0 HP impeller.

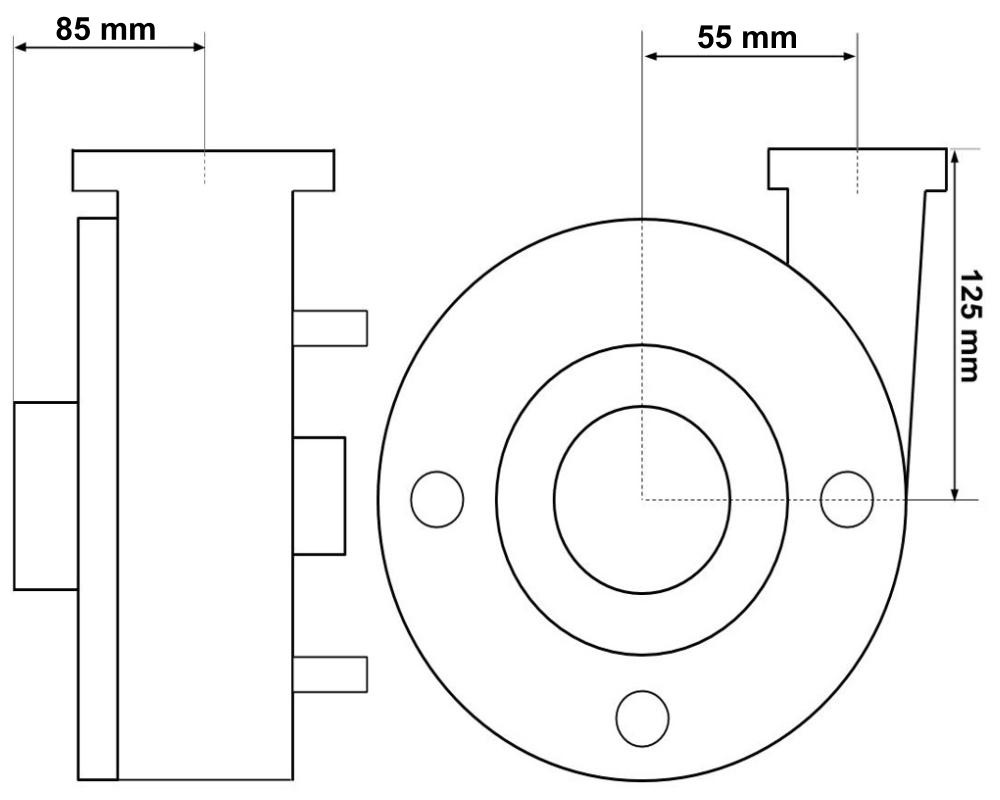

Dimensions
Length: 430 mm
Width: 210 mm
Height: 250 mm
Plumbing Connections
Both the intake and outflow are male threaded with a 94 mm outside diameter. This pump is normally connected to 2-inch pipes. We also offer unions for 2.5-inch pipes.

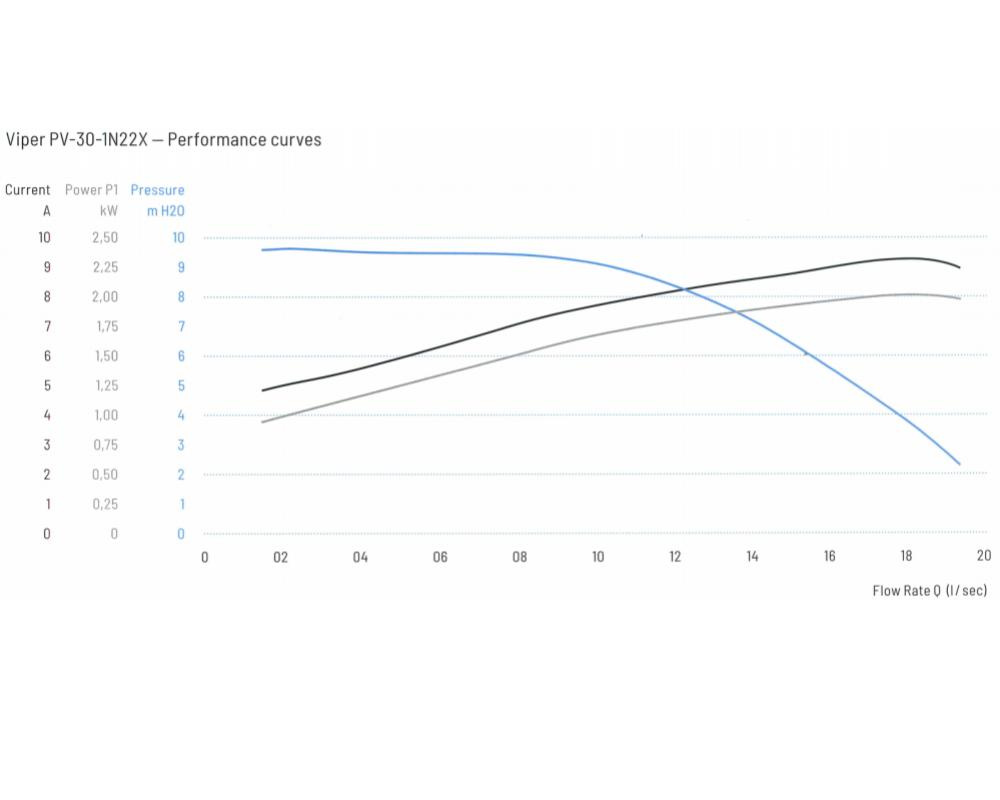

Technical data
Power: 2,9 kW (3 HP)
Current: 12,4 A
Maximum flow rate: 68 m³ / hour
The new Viper models are more powerful, and perfectly replace the old models with lower power.
Cables and plugs
The Waterway Viper pump is available without plug and cable or with a AMP plug.
Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.
Spare parts
We offer a wide range of spare parts for the Waterway Executive Euro pump.
Similar pump
The Aqua-Flo Flo-Master XP3 pump has the same motor power and thread size as the Viper, and roughly similar dimensions. Please note that if you want to replace your pump with another model, you must check the use of space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2-year Tubs Parts warranty
Waterway part numbers
Assembly: 3722022-CE
Assembly : PV-30-1N22X
Wet end with a 5HP impeller: 310-0180
Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types

AMP plug

J&J plug

in.link plug
