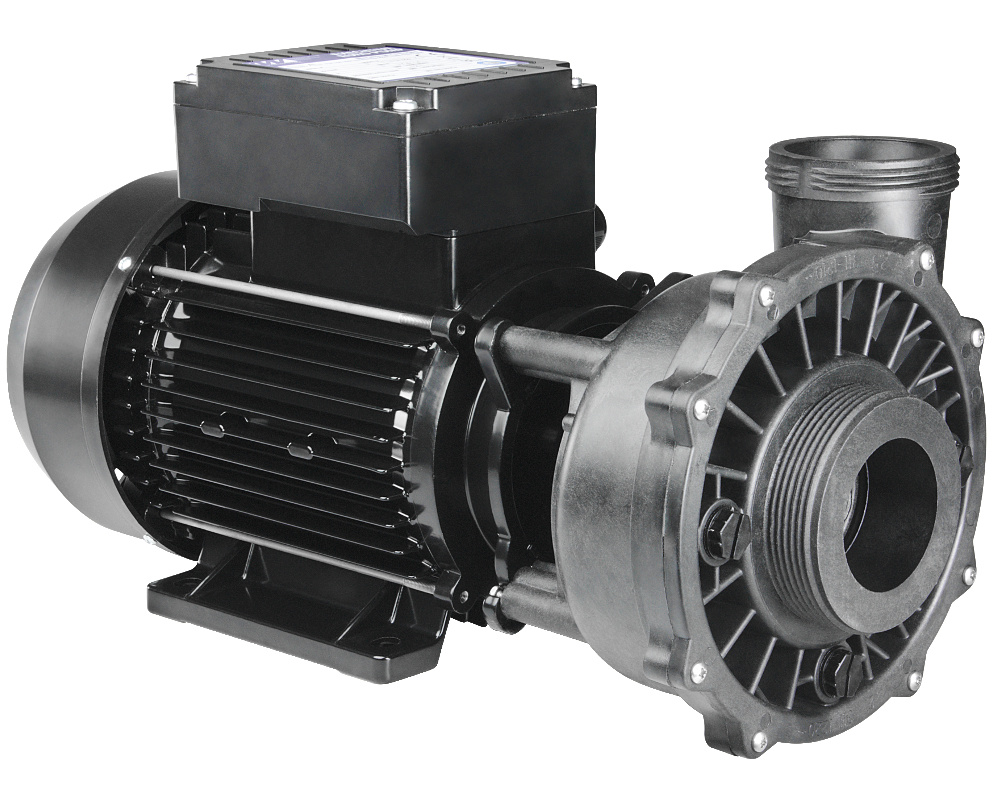

Waterway Executive single-speed pump

The Waterway Executive Euro pump is used by many major spa brands. This pump is a single-speed pump, used to run massage jets. It has an EMG Italian-made water-resistant motor and a high-performance wet end.

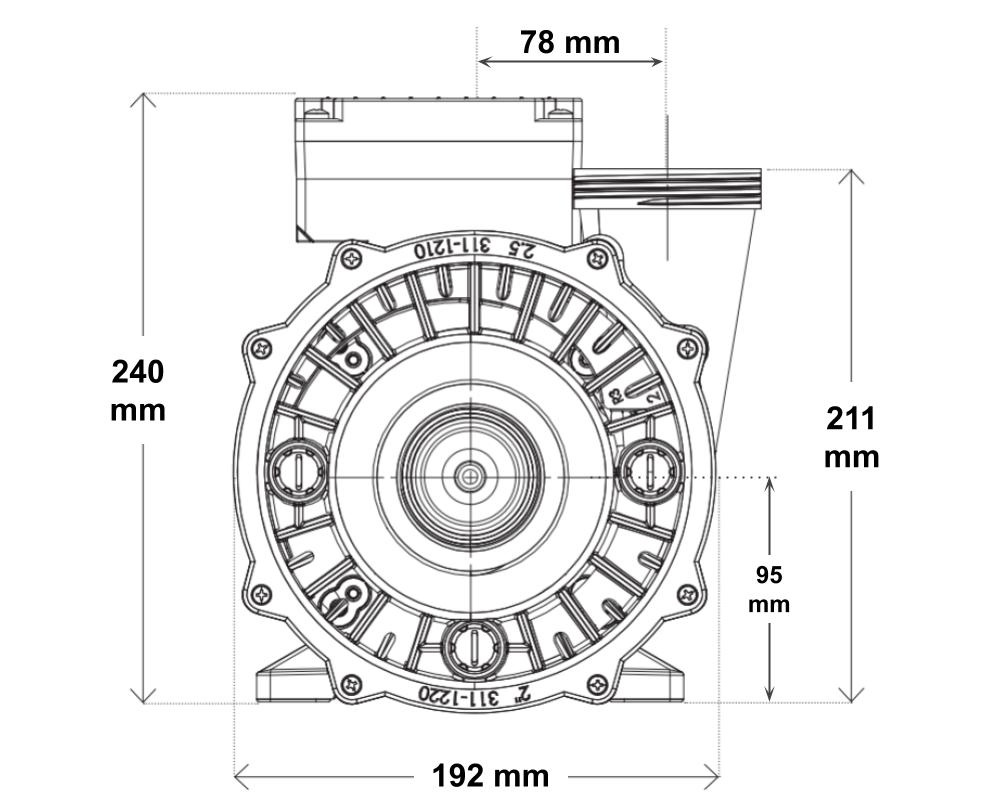

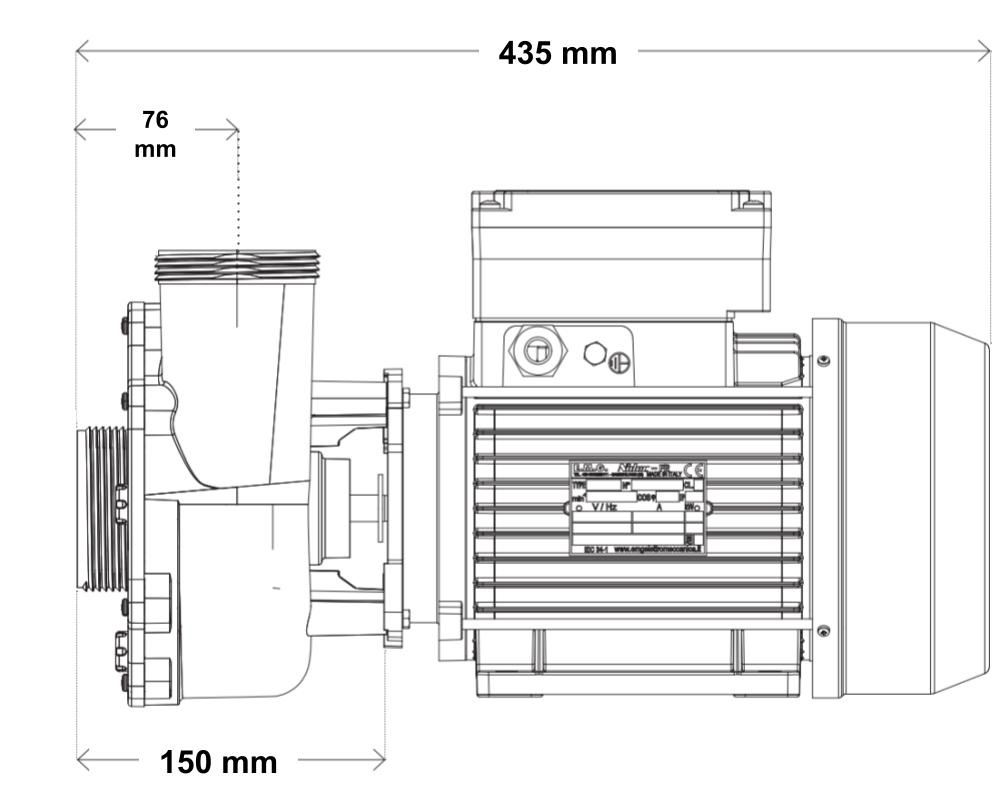

Dimensions
Length: 435 mm
Width: 210 mm
Height: 240 mm

Technical specifications
This Waterway Executive Euro pump is available in three power ratings :

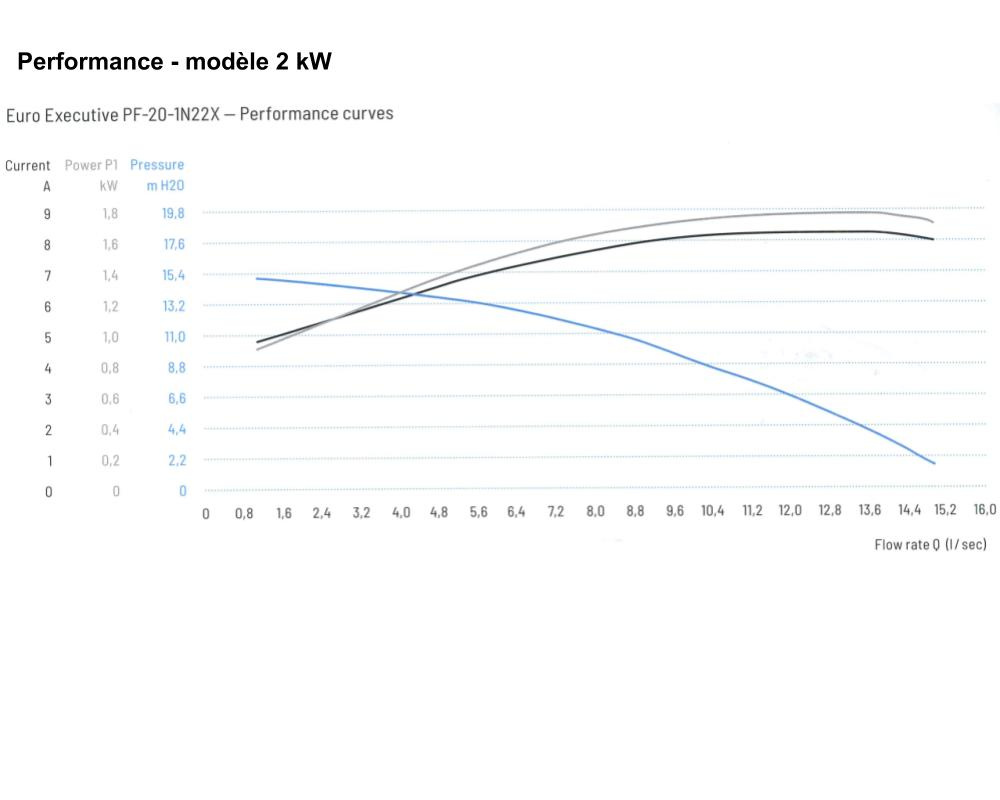

• Power 2 kW / Current 9 A

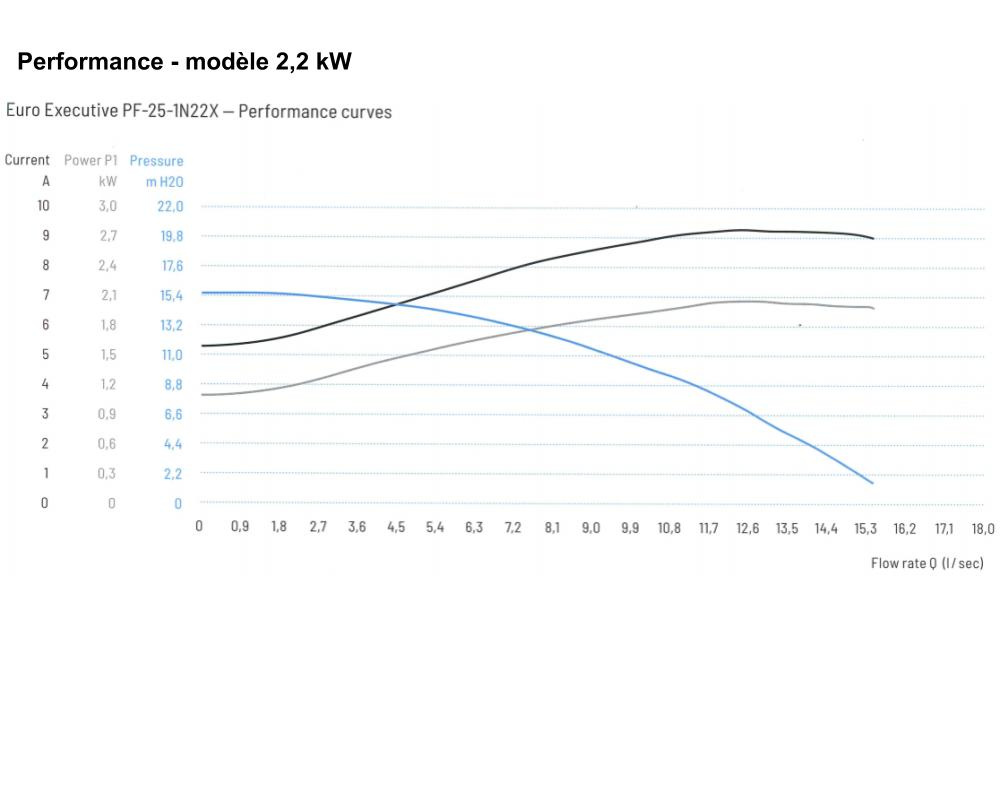

• Power 2,2 kW / Current 10,2 A

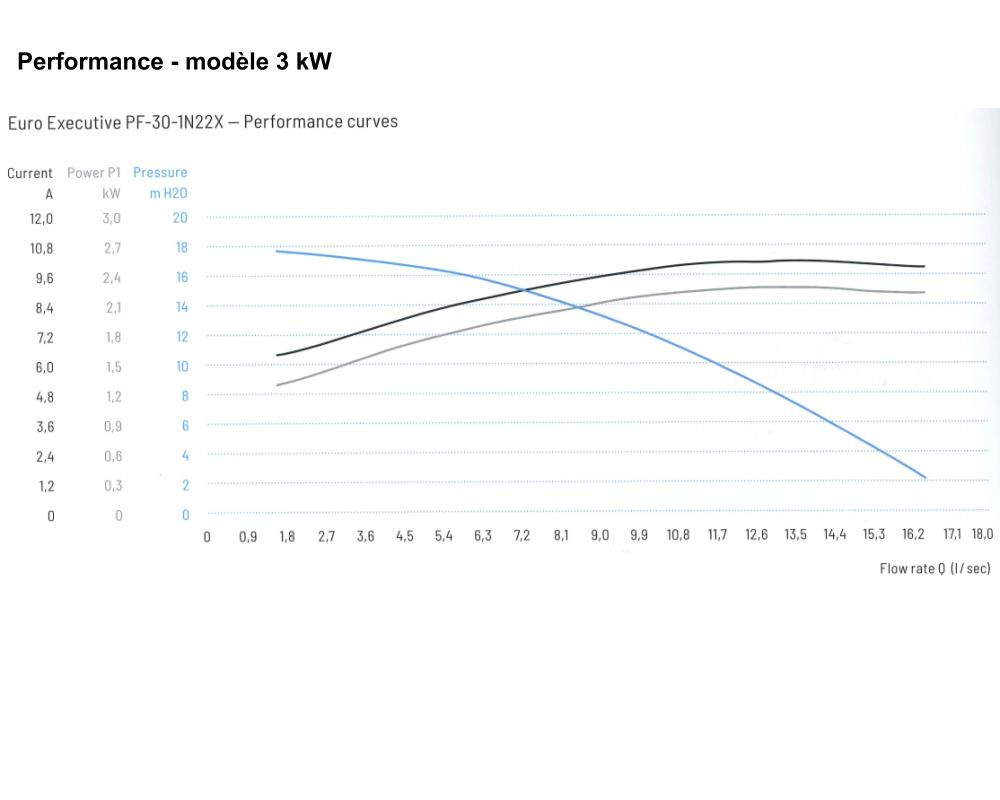

• Power 3 kW / Current 12,4 A

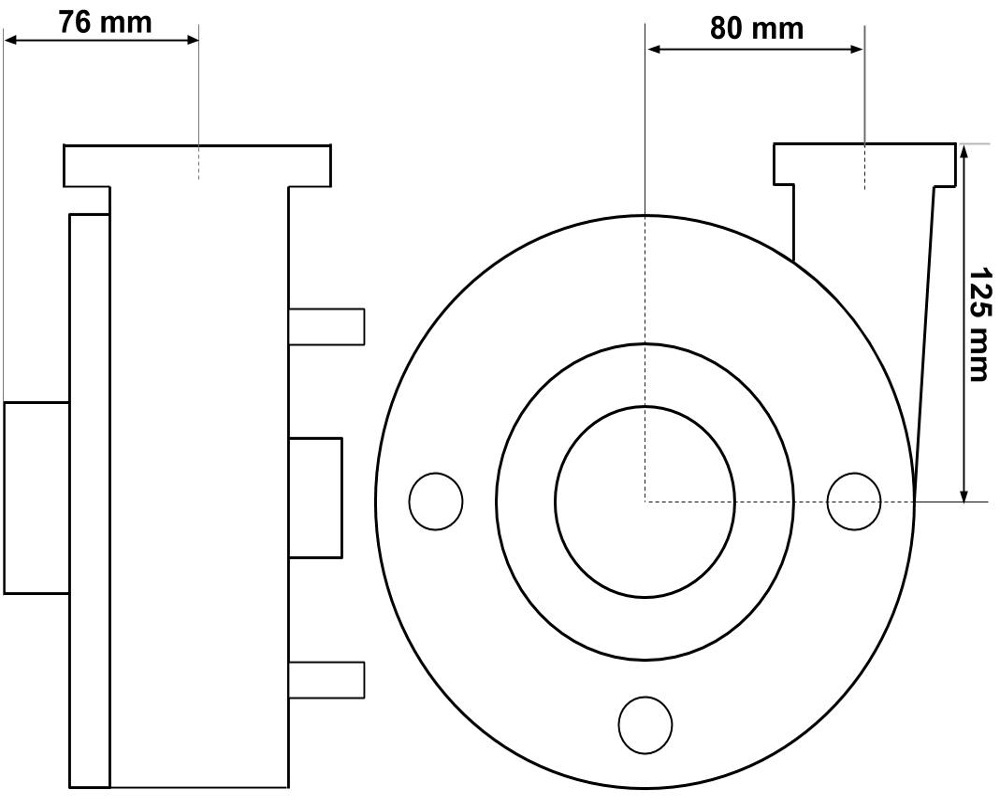

Connections
Outflow: male threaded with a 78 mm outside diameter
Intake: male threaded, either with a 78 mm or a 94 mm outside diameter
This pump is normally connected to 2-inch pipe.

Cables and plugs
The Waterway Executive pump is available without plug and cable or with a AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Spare parts
We offer a wide range of spare parts for the Waterway Executive Euro pump.

Capacitors (in case you need to replace it)

• 25µF for the 2 HP version
• 40µF for the 3 HP version.

Warranty
2-year Tubs Parts warranty

Waterway part numbers
2 kW / 78 mm: PF-20-1N22X, 3R10850-0D
2 kW / 94 mm: PF-20-1N22X25

2,5 kW / 78 mm: PF-25-1N22X
2,5 kW / 94 mm: PF-25-1N22X25

3 kW / 78 mm: PF-30-1N22X, 3R11250-0D, PF-30-1N22C4
3 kW / 94 mm: PF-30-1N22X25
