LX Whirlpool JA50 circulation pump

Available in 1 week
114,00€
incl. 20% VAT
1.5-inch unions
Quantity:

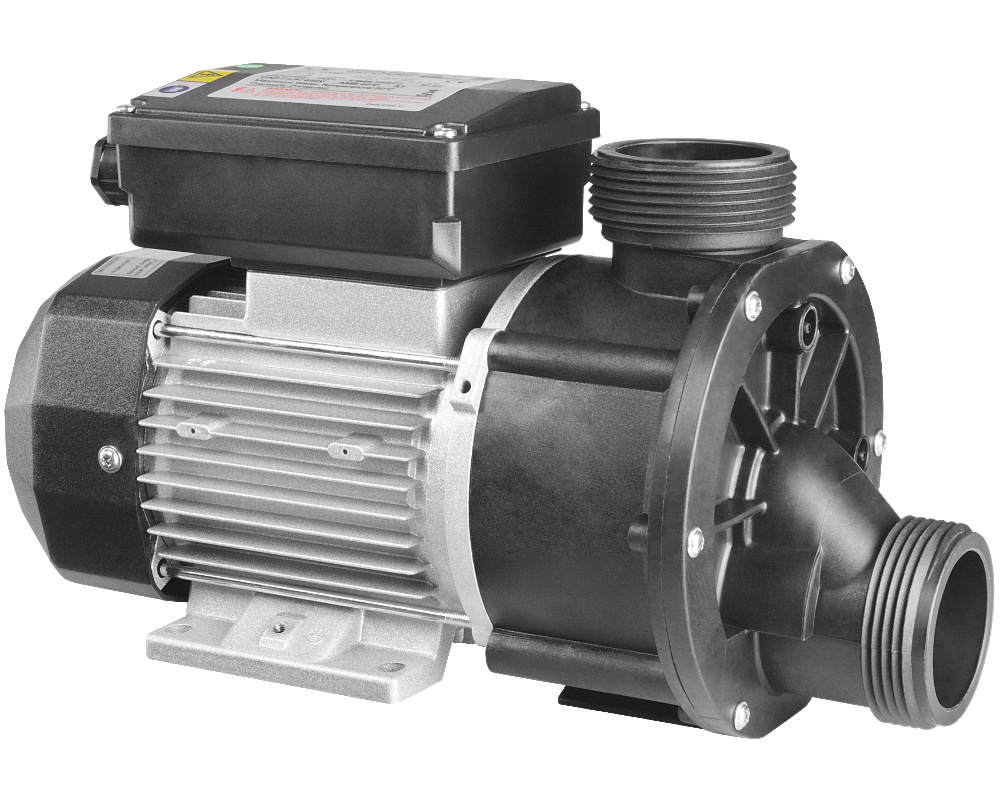

LX Whirlpool JA50 circulation pump - Click to enlarge
LX Whirlpool JA50 circulation pump - Click to enlarge
LX Whirlpool JA50 circulation pump - Click to enlarge
LX Whirlpool JA50 circulation pump - Click to enlarge
LX Whirlpool JA50 circulation pump - Click to enlarge

The LX Whirlpool JA50 circulation pump was launched only 10 years ago, but has already become one of the most widely-used circulation pumps in the industry. It is used, sometimes under other names, by spa manufacturers on every continent. This pump is a perfect replacement for the Spanet XS-3C for example.

It has a maximum flow rate of 180 litres/minute

We also stock the other pumps from Whirlpool's JA range, the JA35, JA50, JA75, JA100, JA120, JA150 and JA200.

Dimensions
Length: 315 mm
Width: 155 mm
Height: 185 mm

Technical specifications
Power: 370W - 0.5HP
Speed: 2850 rpm
Maximum flow rate: 180 litres/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
Pump unions and o-rings for 1.5-inch pipes are supplied.

Cable and plug
The LX Whirlpool JA50 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Similar pump
The Koller 0.54 HP pump model is slightly more powerful but has the same thread size as the JA50 self-drain pump. The dimensions however are different. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
LX Whirlpool: JA50
Volition: 5AJ

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
