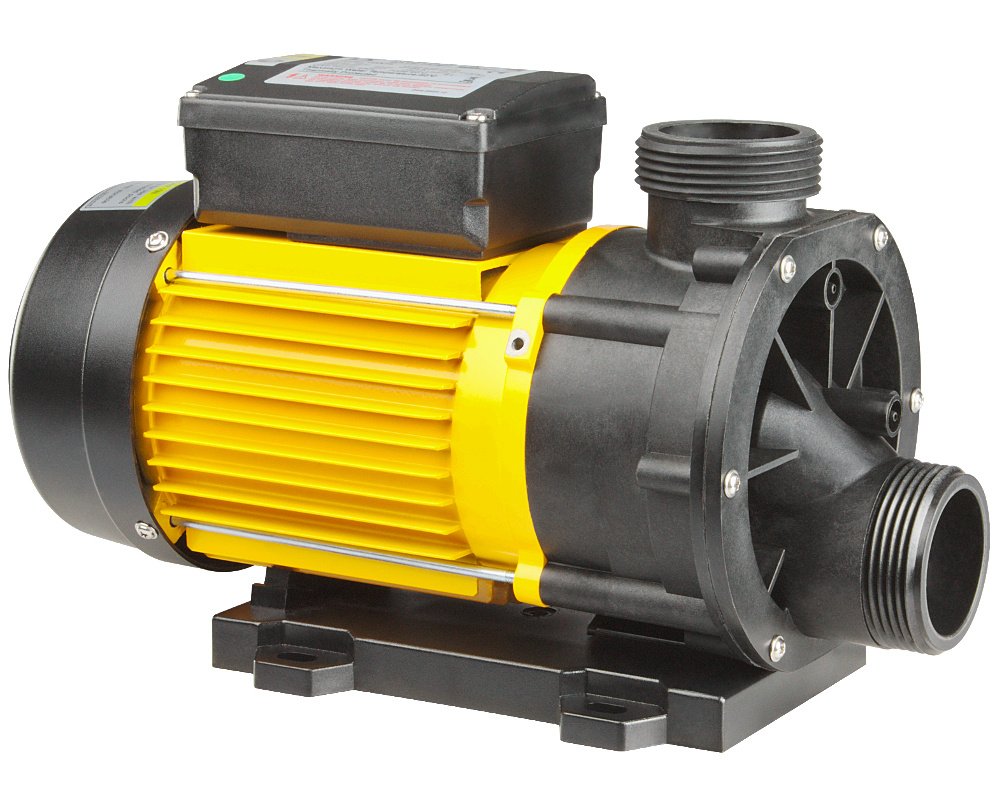

LX Whirlpool TDA75 circulation pump

In stock

139,50€

incl. 20% VAT

LX Whirlpool TDA75 circulation pump - Click to enlarge

The LX Whirlpool TDA75 single-speed pump is generally used for circulation and heating, like others from the same series : the TDA35 and TDA50, which have different power ratings.

The TDA100 and TDA200 are more powerful models, and are used as massage pumps.

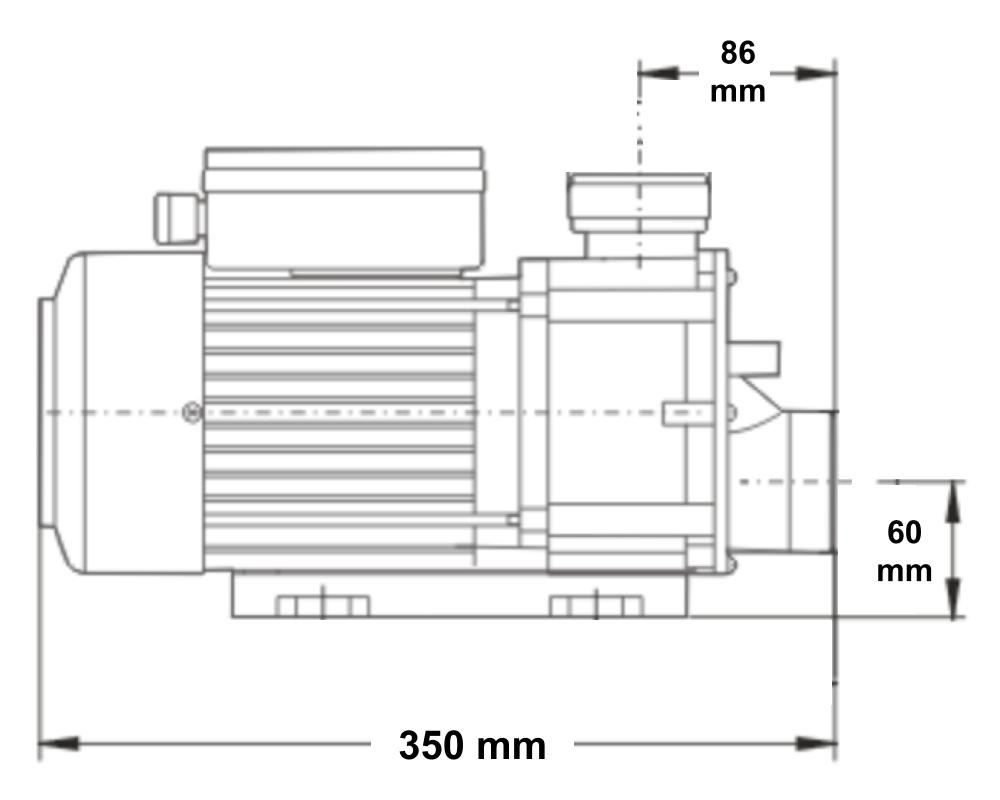

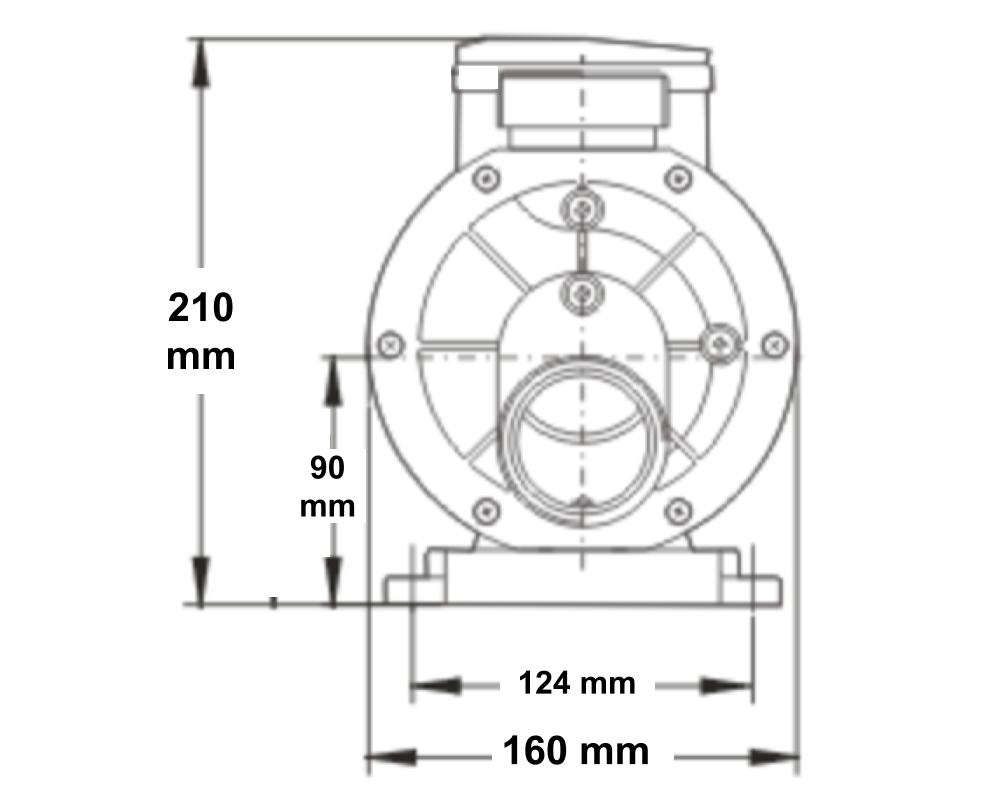

Dimensions
350 x 160 x 210 mm

Technical specifications
Power: 0.55 kW (0.75 HP)
Speed: 2850 rpm
Maximum flow rate: 300 liters/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT)
Pump unions and o-rings for 1.5-inch pipes are supplied.

Spare parts
We offer a range of spare parts for this pump.
Most versions use a 10 µF capacitor, in case you need te replace it (but double-check yours anyway).

Cable and plug
The LX Whirlpool TDA75 circulation pump is available pre-wired without a plug or with a AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2-year Tubs Parts warranty

Part numbers
LX Whirlpool : TDA75
Kinedo: SPOM008

Plug types
