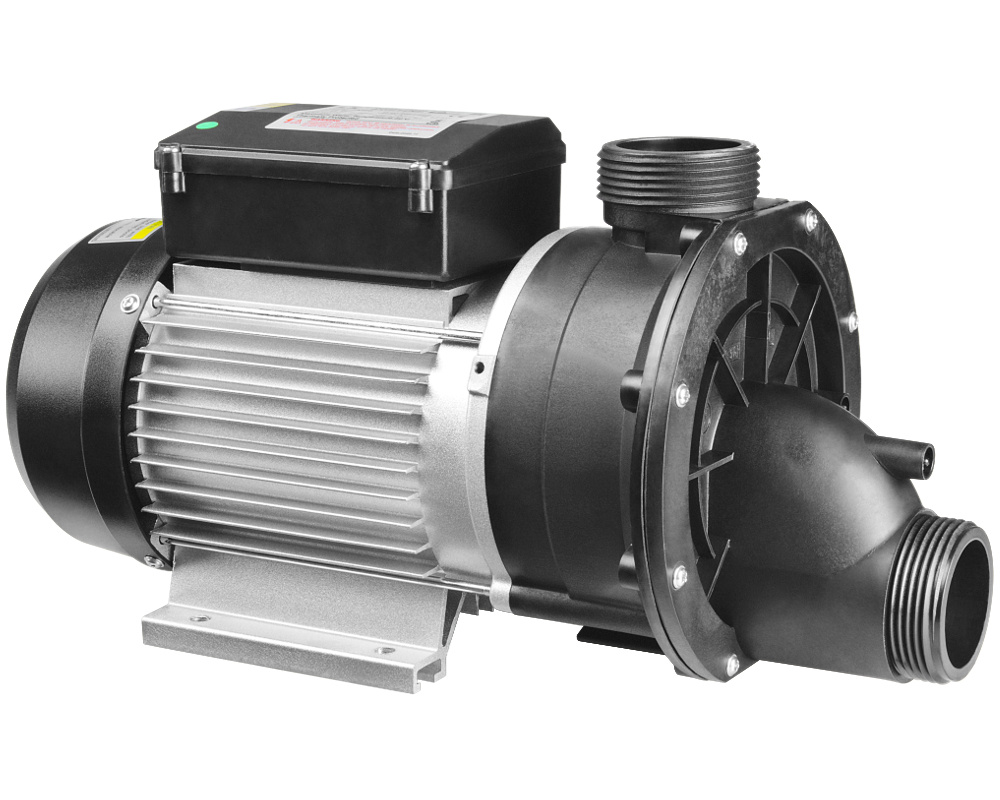

LX Whirlpool JA150 single-speed pump, 1,5HP
The LX Whirlpool JA150 is a compact, single-speed massage pump, used by several hot tub manufacturers.

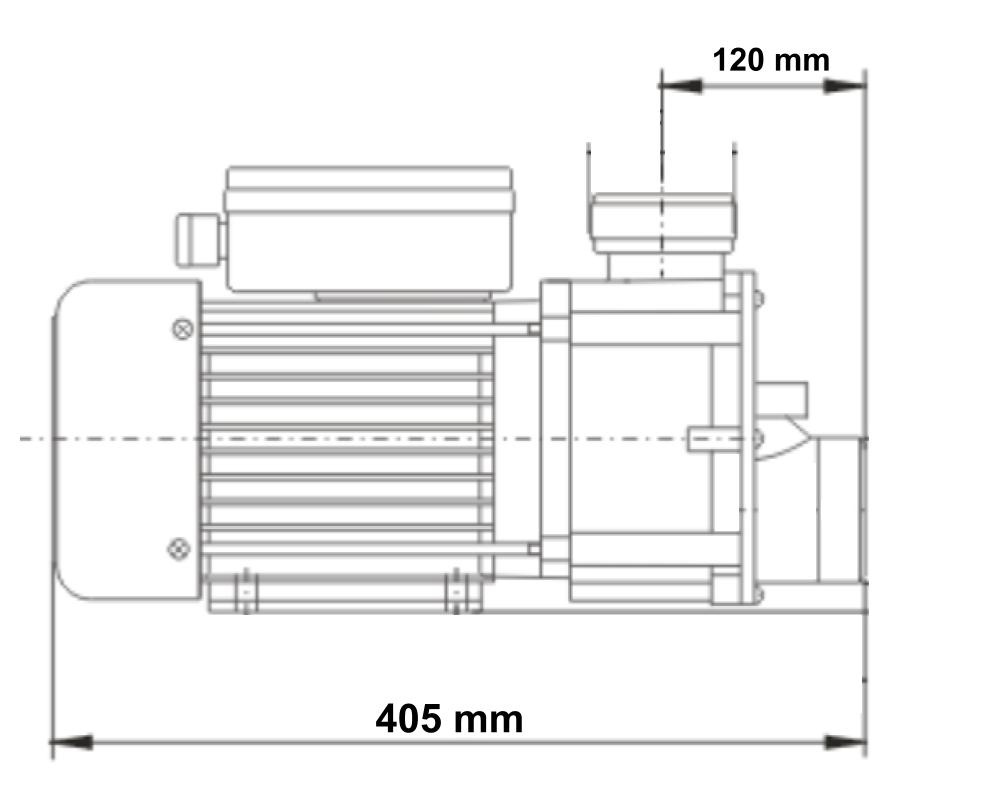

Length: 405 mm
Width: 186 mm
Height: 215 mm
Power: 1100 W, 1.5 HP
Maximum flow: 380 litres/minute
The LX Whirlpool JA150 pump is delivered pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug or an in.link plug (length 220 cm).
Capacitors (just in case you need to replace one)
JA120: 25 µF
Other spare parts
Click here to get some spare parts.
The LX Whirlpool JA200 and TDA200 pumps have the same thread size, similar dimensions and are a slightly more powerful than the JA150. If you want to replace your pump with another model, you should check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
2-year Tubs Parts warranty
