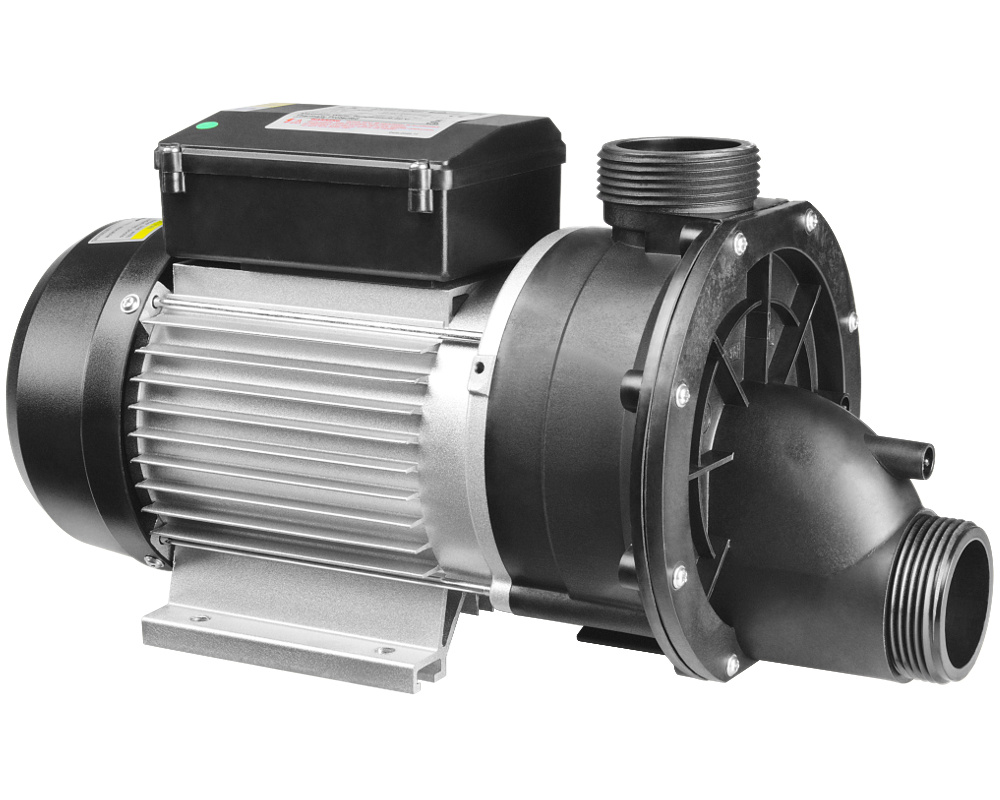

LX Whirlpool JA200 single-speed pump, 2HP
The LX Whirlpool JA200 is compact single-speed massage pump, used by several hot tub manufacturers.
We supply all pumps of the JA series: JA120 and JA150 as single-speed pumps, and JA35, JA50 JA75 and JA100 as 24-hour circulation pumps.

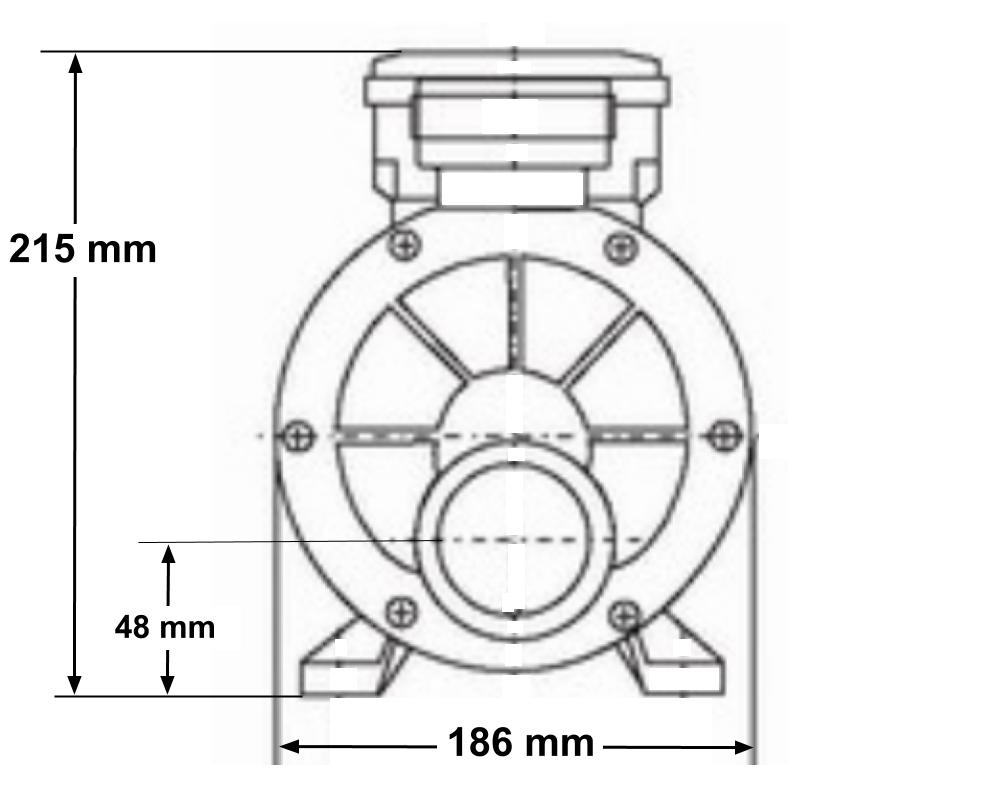

Dimensions
Length: 405 mm
Width: 186 mm
Height: 215 mm
Technical specifications
Power: 1.5 kW (2.0 HP)
Maximum flow rate: 450 litres/minute
Thread diameter: 62 mm (1.5-inch MBT).
We offer unions and o-rings for 1.5-inch pipes
Cable and plug
The LX Whirlpool JA200 pump is delivered pre-cabled with an AMP plug (length 130 cm). You can also choose to have it pre-cabled by our team with a mini J&J plug or an in.link plug (length 220 cm).
Capacitors (just in case you need to replace one)
JA200: 25 µF
Other spare parts
Click here to get some spare parts
Similar pump
The LX TDA200 pump has the same motor power and dimensions as the JA200.
Warranty
2-year Tubs Parts warranty
Plug types

AMP plug

J&J plug

in.link plug
