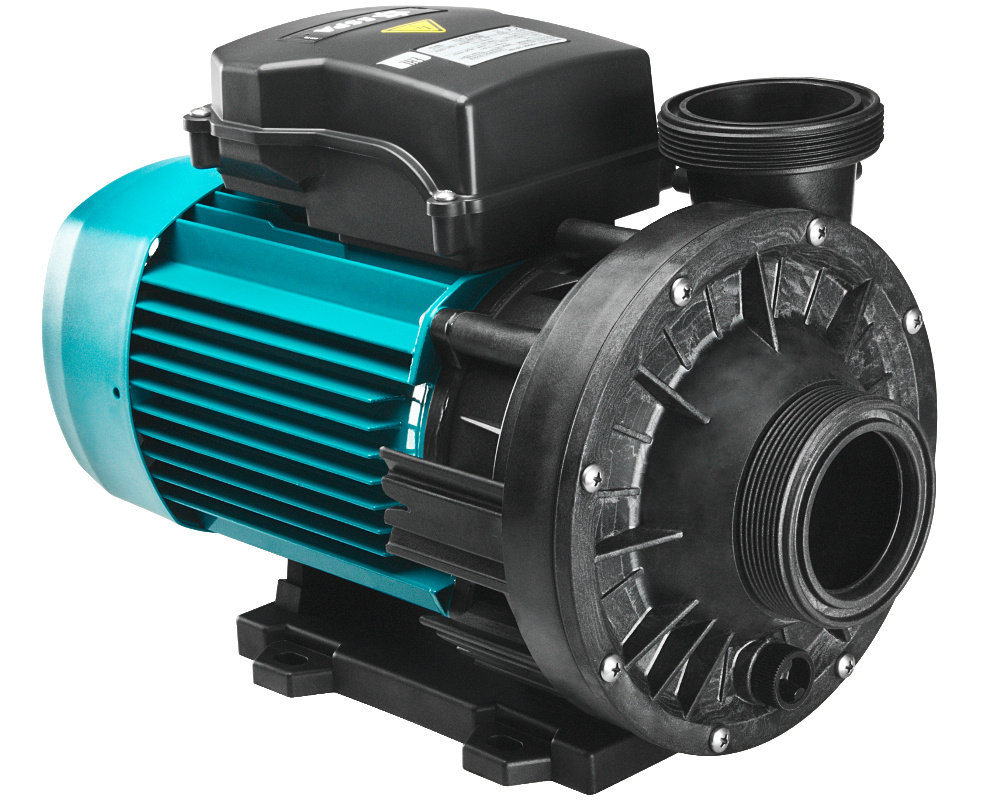

Espa Wiper3 2-speed pump

The Wiper3 2-speed pump by Espa is used by several spa and hot tub manufacturers, including Aquamarine. When operating at low speed, the water is efficiently filtered; at high speed, the pump powers the massage jets in the spa.

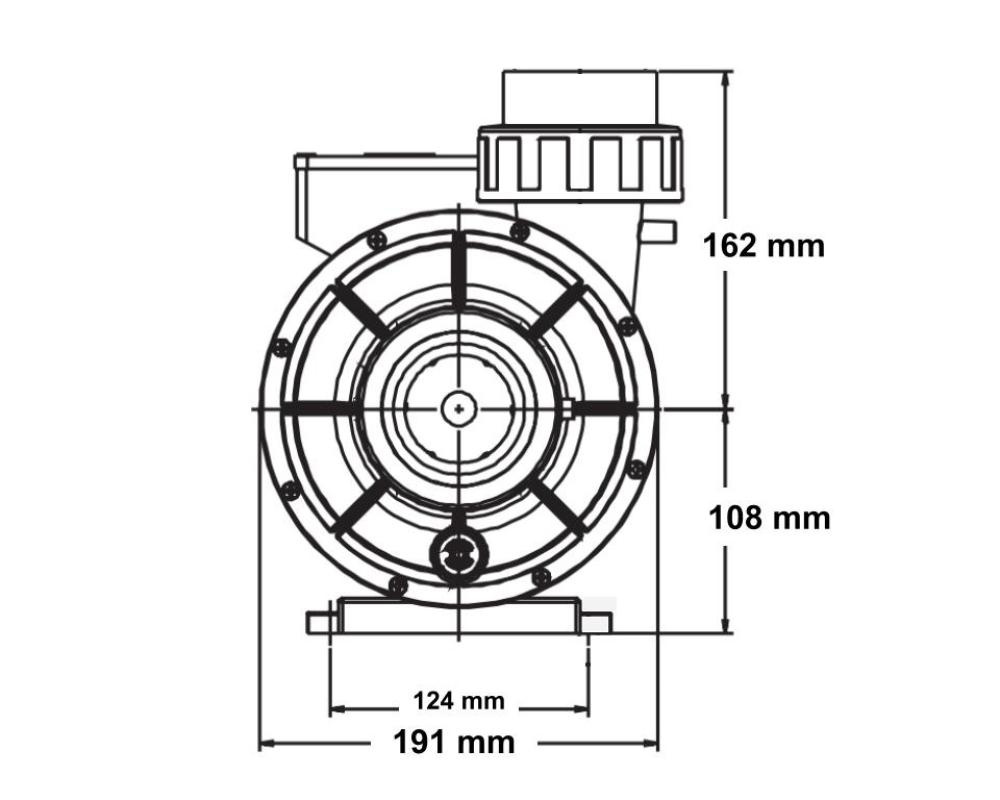

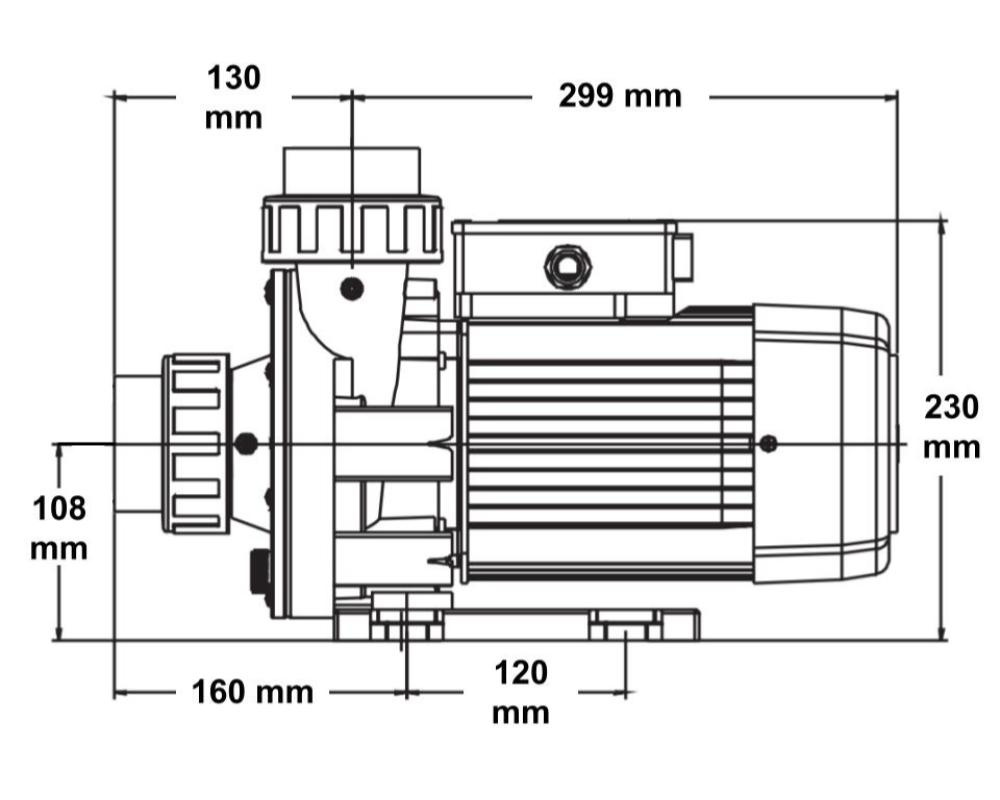

Dimensions
Length: 299 mm (with the intake union)
Height: 230 mm (with the outflow union)
Width: 191 mm

Technical specifications
This Espa Wiper3 pump is available in three power ratings :

150M: Power 1.4 kW high speed (0.35 kW low speed)
200M: Power 2 kW high speed (0.4 kW low speed)

Connections
Inflow and outflow: male thread with a 78 mm outside diameter.
The pump is supplied with two pump unions (including gaskets) for 63 mm pipes.

Cable and plug
The Espa Wiper3 pump is delivered without plug and cable or with an AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Warranty
2-year Tubs Parts warranty

Part numbers
150M: PP04410
200M: PP04417

Plug types

AMP plug

J&J plug

in.link plug
