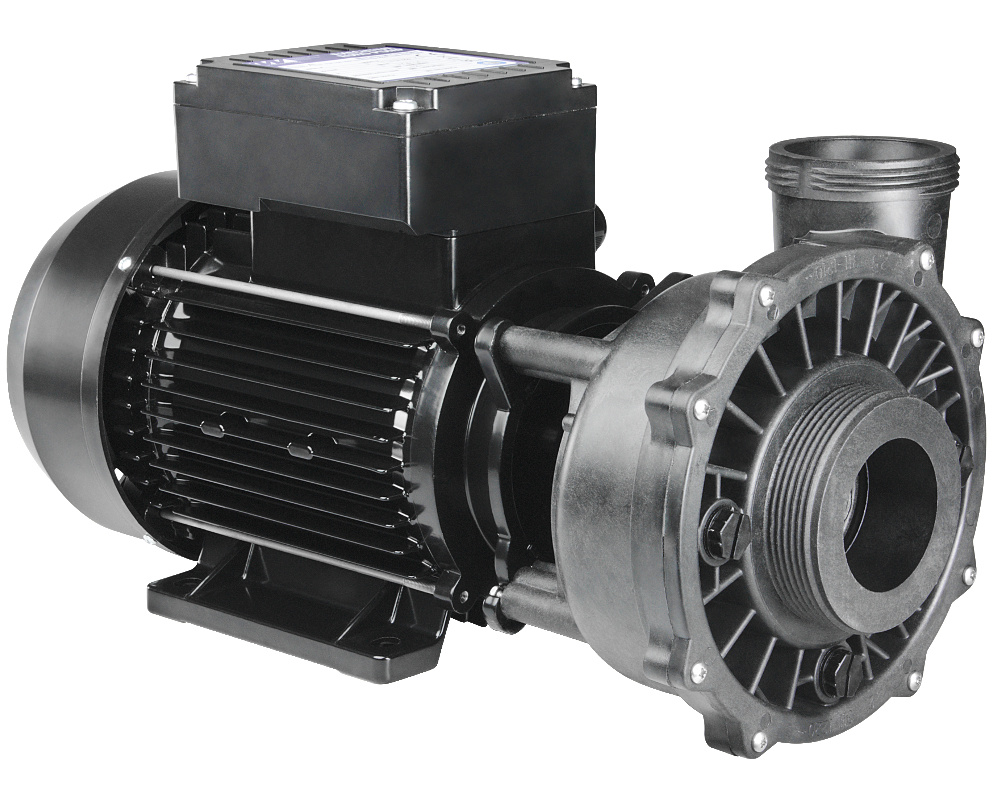

Waterway Executive 2-speed pump

The popular Waterway Executive Euro two-speed pump is quiet and efficient. It has two speeds of operation: the low speed operates the filtration of the spa, and the high speed powers the massage jets. It has an Italian-made water-resistant EMG motor.

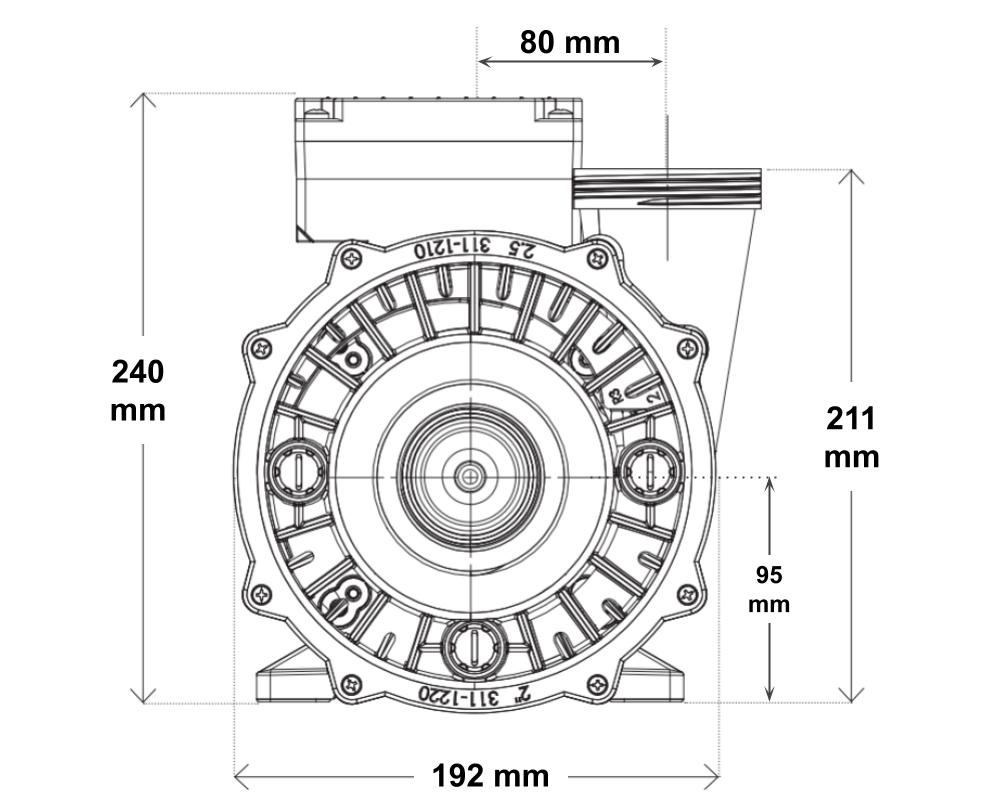

Dimensions
Length: 435 mm
Width: 210 mm
Height: 240 mm

Technical specifications
The Waterway Executive Euro pump is available in three power ratings:

• 2 kW high speed / 0,36 kW low speed
• 2,4 kW high speed / 0,43 kW low speed
• 2,7 kW high speed / 0,55 kW low speed

Connections
Outflow: male thread with a 78 mm outside diameter.
Intake: male thread with an outside diameter of either 78 mm or 94 mm.
The pump is usually connected to 2-inch pipe.

Cable and plug
The Waterway Executive pump is delivered without a cable or with an AMP plug.

Installations equipped with a mini J&J plug must select the AMP plug option and use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Spare parts
We offer a wide range of spare parts for the Waterway Executive Euro pump.

Warranty
2-year Tubs Parts warranty

Waterway part numbers
2 kW / 78 mm: PF-20-2N22X (replaces 3R20850-0D)
2 kW / 94 mm: PF-20-2N22X25

2,4 kW / 78 mm: PF-25-2N22X (replaces PF52N22X)
2,4 kW / 94 mm: PF-25-2N22X25

2,7 kW / 78 mm: PF-30-2N22X (replaces 3R21050-0D, PF-52-2N25X and PF-30-2N22C)
2,7 kW / 94 mm: PF-30-2N22X25

Other part numbers
Beachcomber: Master Massage XLT
