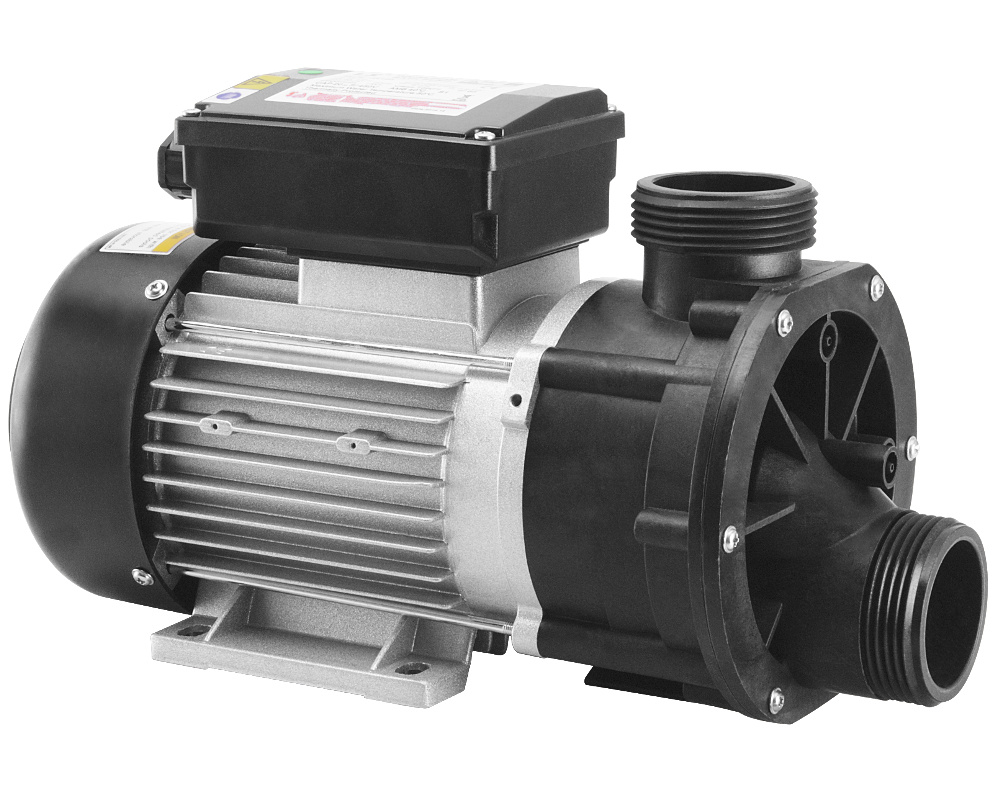

LX Whirlpool JA75 circulation pump
The LX Whirlpool JA75 is a 0.75 HP circulation pump used by many spa manufacturers.
The JA75 a perfect remplacement for a DXD-8 pump.
We sell all pumps in the JA series : JA35, JA50 and JA100 as 24-hour circulation pumps, and JA120, JA150 and JA200 as massage pumps.
Power: 550 W (0.75 HP)
Speed: 2850 rpm
Maximum flow rate: 300 litres/minute
Capacitor: 10 µF
Height: 205 mm
Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
Pump unions and o-rings for 1.5-inch pipes are supplied.
Cable and plug
The LX Whirlpool JA75 circulation pump is supplied pre-cabled with an AMP plug (length 130 cm).
Installations equipped with a mini J&J plug must use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.
Spare parts
We offer a wide range of spare parts for this pump: the electrical protection box, the mechanical seal or the flange.
The LX Whirlpool DH1.0 pump has the same motor power and thread size as the JA75, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.
Warranty
2 years Tubs Parts warranty
Plug types
AMP plug
J&J plug
in.link plug
