LX Whirlpool JA120 single-speed pump, 1.2HP

Only 2 in stock

153,00€

incl. 20% VAT

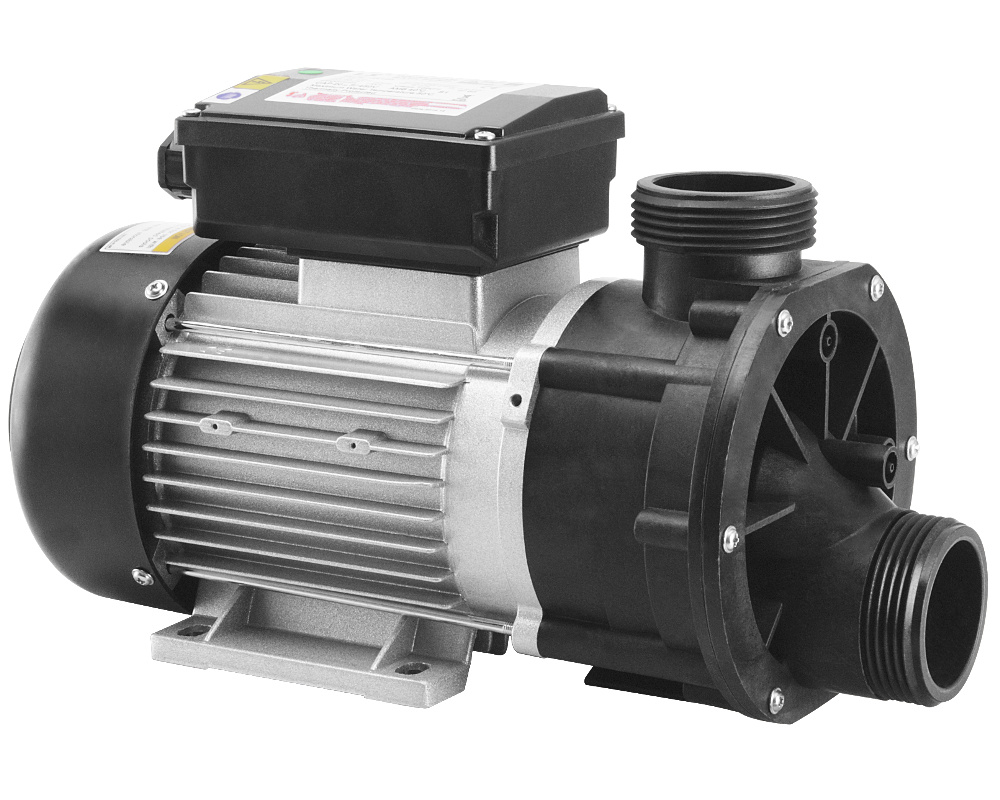

LX Whirlpool JA120 single-speed pump, 1.2HP - Click to enlarge

The LX Whirlpool JA120 is compact massage pump, used by several hot tub manufacturers.

We sell all pumps in the JA series: JA150 and JA200 as single-speed pumps, and JA35, JA50, JA75 and JA100 as 24-hour circulation pumps.

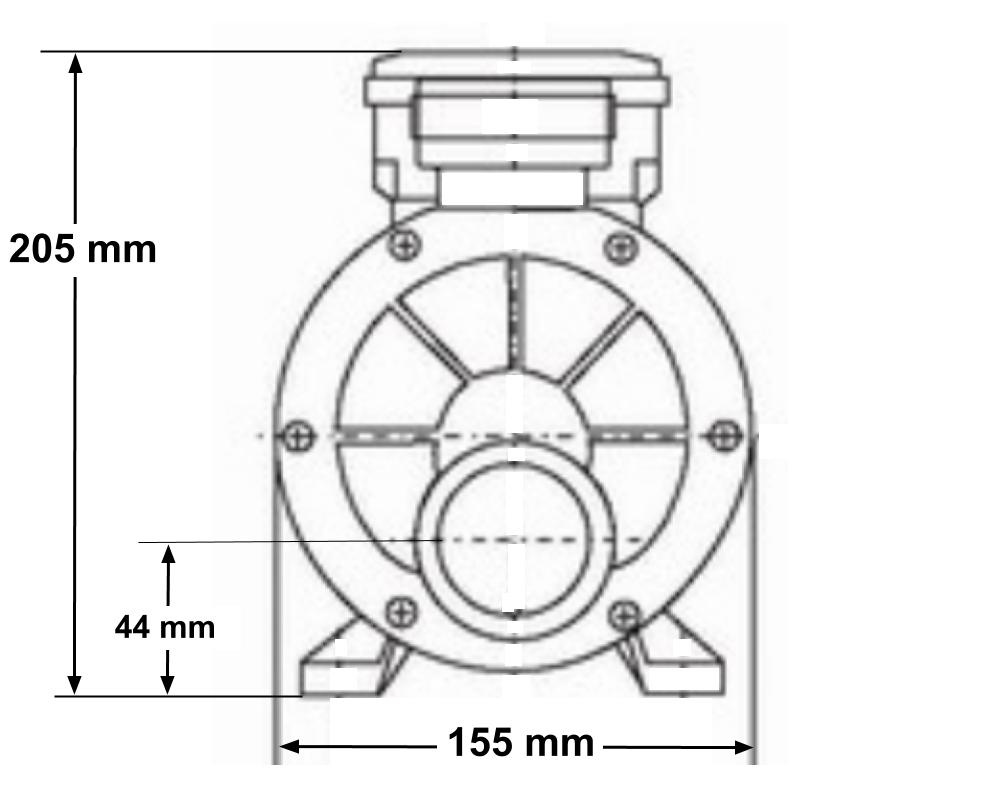

Dimensions
Length: 435 mm
Width: 155 mm
Height: 205 mm

Technical specifications
Power: 900W, 1.2 HP, 900 W

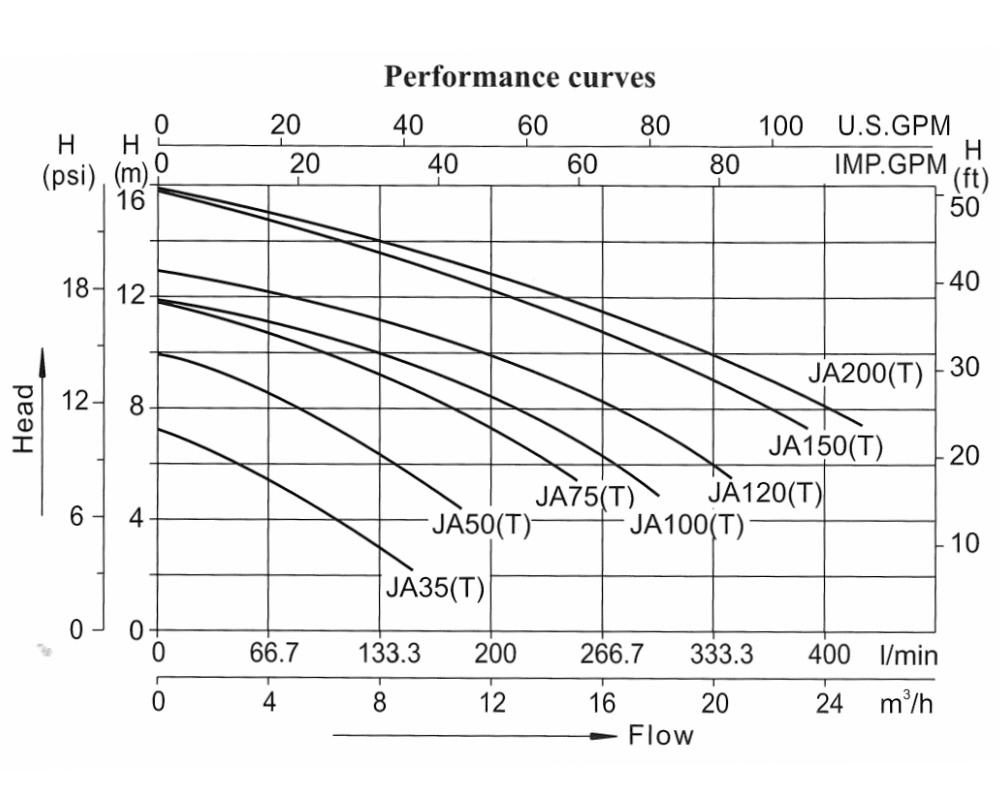

Maximum flow rate: 335 liters/minute

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
We offer unions and o-rings for 1.5-inch pipes

Cable and plug

The LX Whirlpool JA120 pump is delivered pre-cabled with an AMP plug (length 130 cm). You can also choose to have the pump pre-cabled by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Capacitors (just in case you need to replace one)
JA120: 25 µF

Other spare parts
Click here to find spare parts for this pump.

Similar pumps
The LX Whirlpool EA450 pump has the same motor power and thread size as the JA120, and roughly similar dimensions. Please note that if you want to replace your pump with another model, you must check the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Plug types
