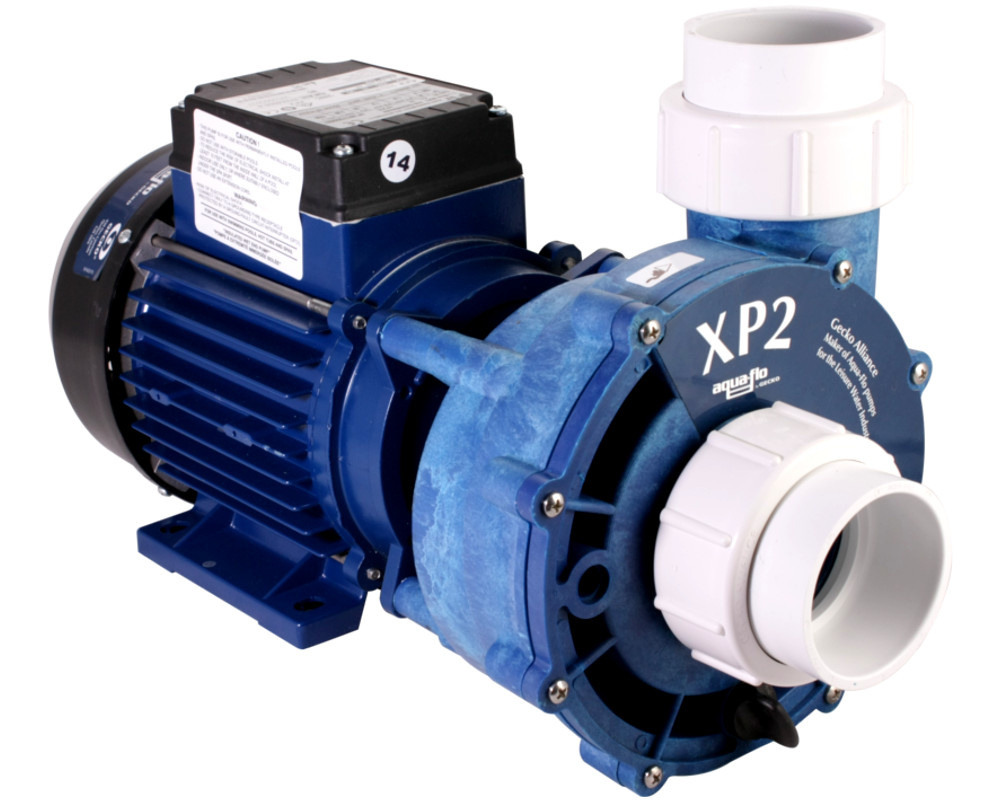

Aqua-Flo Flo-Master XP2 single-speed pump

The Aqua-Flo Flo-Master XP2 pump (also sold under the Gecko brand) is perfect for powering massage jets on all types of spas. The XP2 has similar dimensions to its XP2e 3 HP sister model, but be careful of the height if there isn't a lot of space.

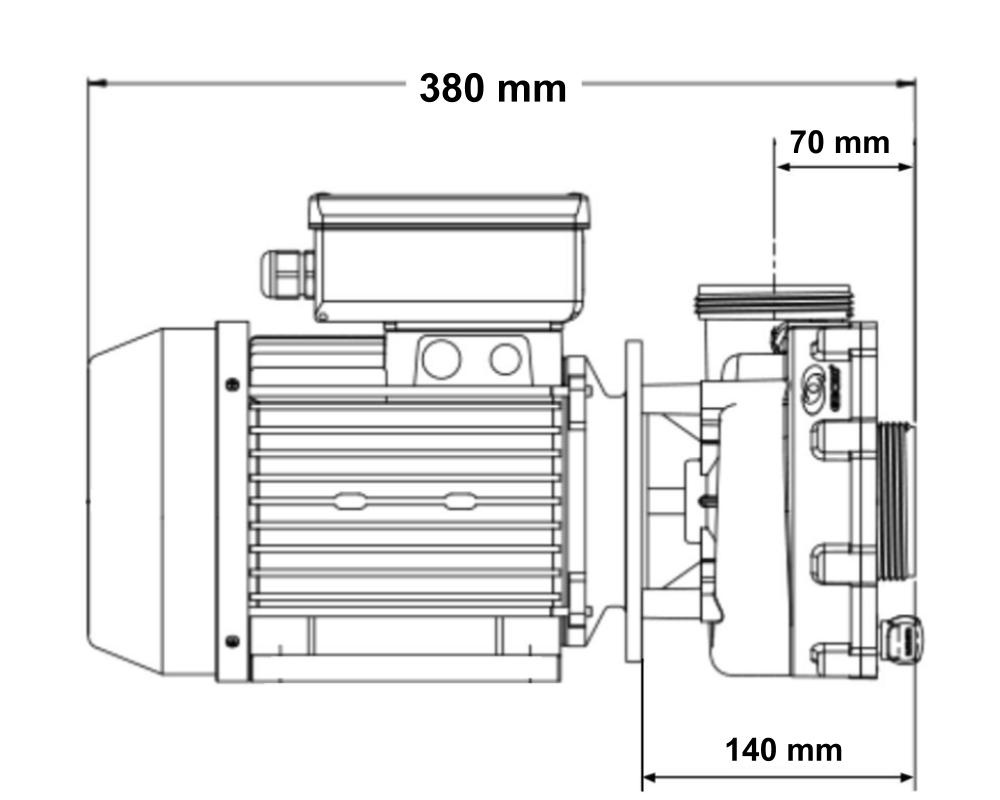

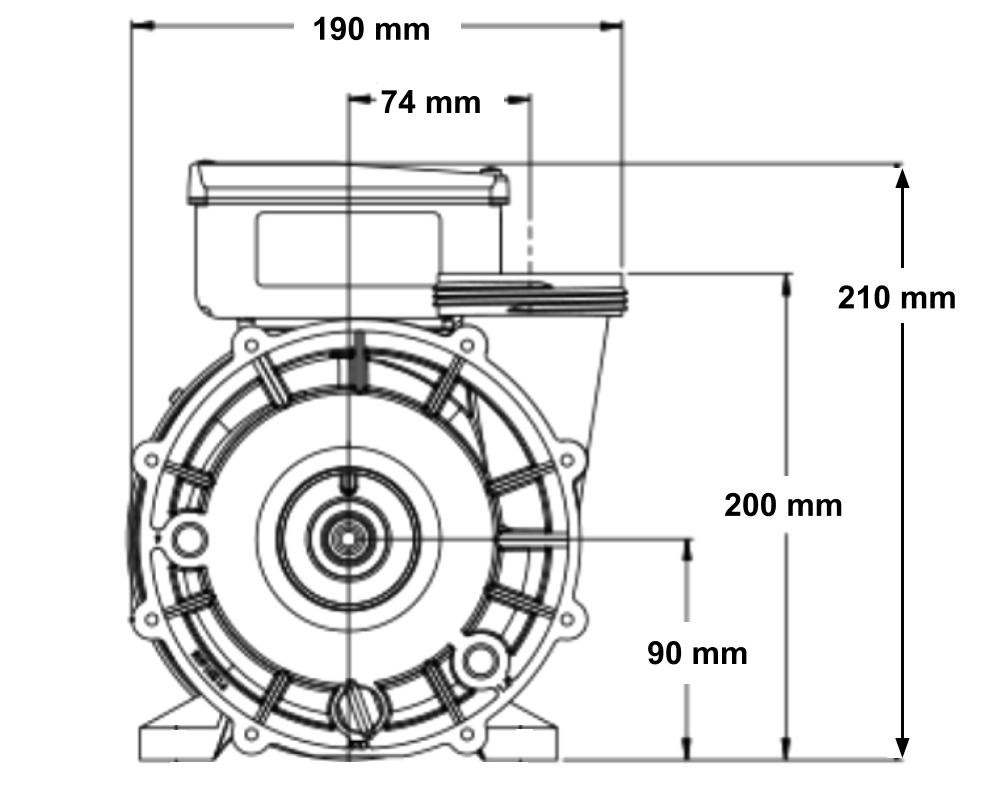

Dimensions
Length: 380 mm
Width: 190 mm
Height: 210 mm

Technical specifications
This Aqua-Flo Flo-Master XP2 pump is available in two power ratings:

• Power 1,5kW (2 HP) / Current: 6,7 A
• Power 1,8kW (2.5 HP) / Current: 8 A

Pipe connections
Male thread (2-inch MBT) with a 78 mm outside diameter.
This pump is supplied with pump unions for 2-inch pipes. You can also choose pump unions for 1.5-inch pipes or 63 mm pipes.

Cable and plug
The Aqua-Flo Flo-Master XP2 pump is delivered pre-cabled with an AMP plug (length 210 cm).

Installations equipped with a mini J&J plug must use a adapter from AMP to mini J&J (sold separately), or reuse the cable from their existing pump if it is in good condition.

Spare parts
We offer some spare parts for this pump: the wet end, faceplate, wet end seal, impeller and wear ring, among others.

Warranty
2-year Tubs Parts warranty

Gecko / Aqua-Flo part numbers
1,5 kW (2 HP): 07030003-6040
1,8 kW (2,5 HP): 07044000-6040
3 kW (3 HP): 05253000-6040
Marquis Spa: 630-6119 (2 HP)
The XP2 is a good option to replace several different older models, including some Theramax pumps. Use the 2HP version to replace a Theramax 06020841-6 on Sundance Spas, for example.

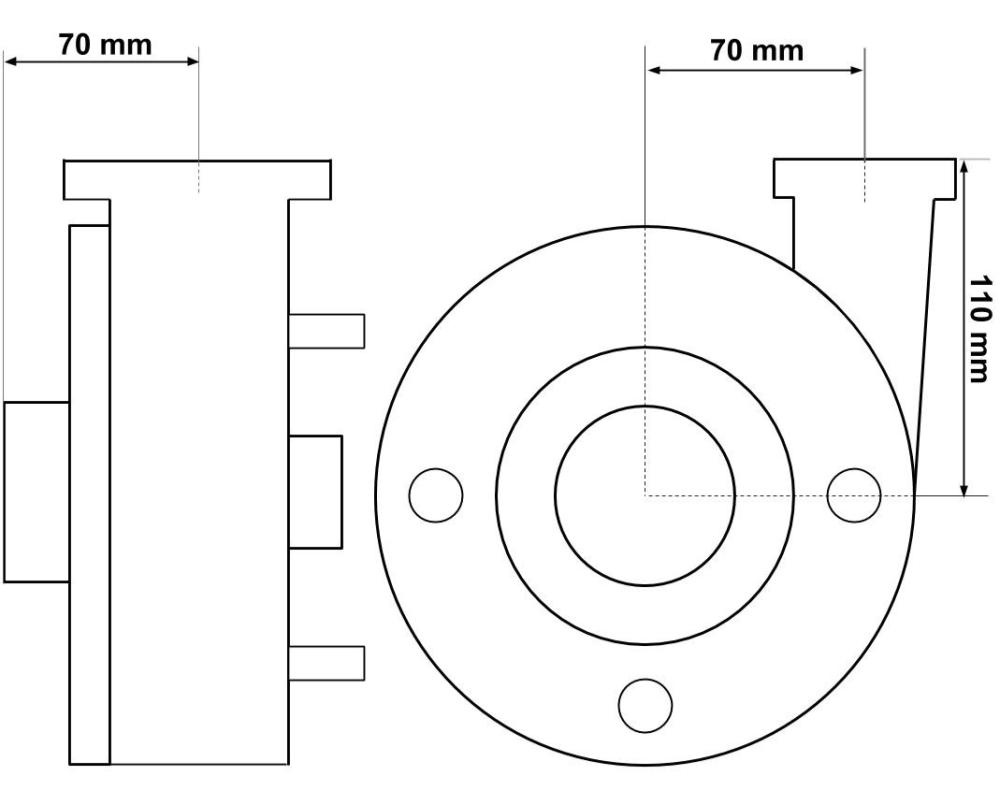

Wet end orientation

Standard exit

Exit to left

Exit to right

Plug types

AMP plug

J&J plug

in.link plug
