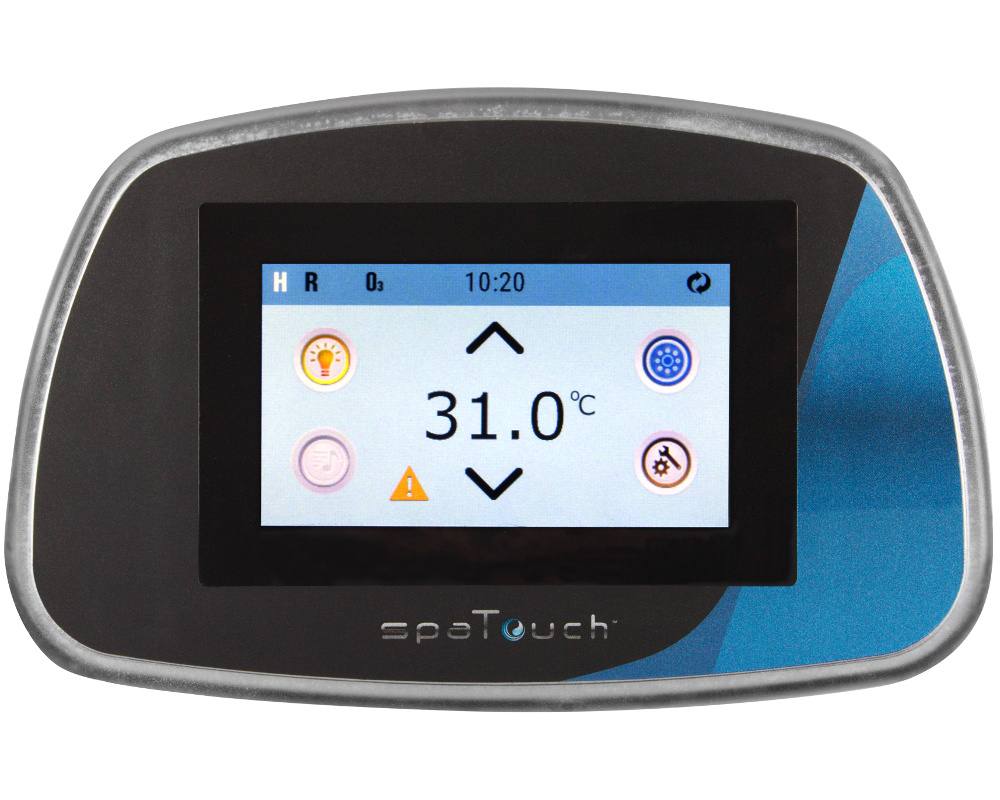

Balboa spaTouch 2 control panel - trapezoid
The Balboa SpaTouch 2 is a touch-sensitive screen that replaces a conventional hot tub keypad. It is compatible with all BP systems that already support the TP800 and/or the TP900: BP200G1, G2 and G3, BP200UX, BP600, BP6013G1, BP6013G2, BP6013G3 and BP2100G1, G2 and G3.
This keyboard is supplied with its overlay.
This is the trapezoid version. We also offer the spaTouch 1 in square and oval versions.
If this keypad is used with a system that supports only the TP400 model T or model W and/or the TP600, many screens will work correctly, and the spa screen will try to display all of your equipments, but in some cases it may not display correctly.
The spaTouch2 trapezoid version -02 is compatible with the Clim8zone heat pump.
Dimensions
Keypad: 200 x 120 mm
Cut out area : 119 x 89 mm
Warranty
2-year Tubs Parts warranty
Part numbers
Balboa: 57220, 57324-02 (with overlay) or 57219 (without overlay)
This model replaces the SpaTouch 1, part number 50585
Wellis: ACM0607 (keypad) and ACM0609 (overlay)
Marquis Spas: 650-0782
Sunrise Spas: R6021765
