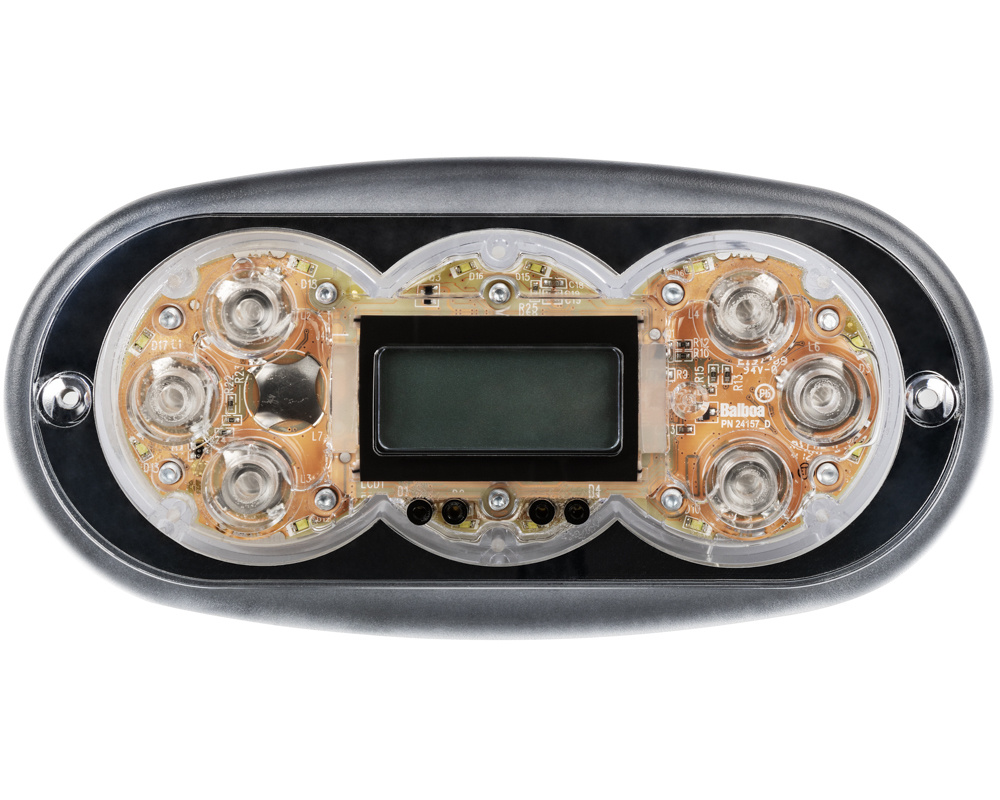

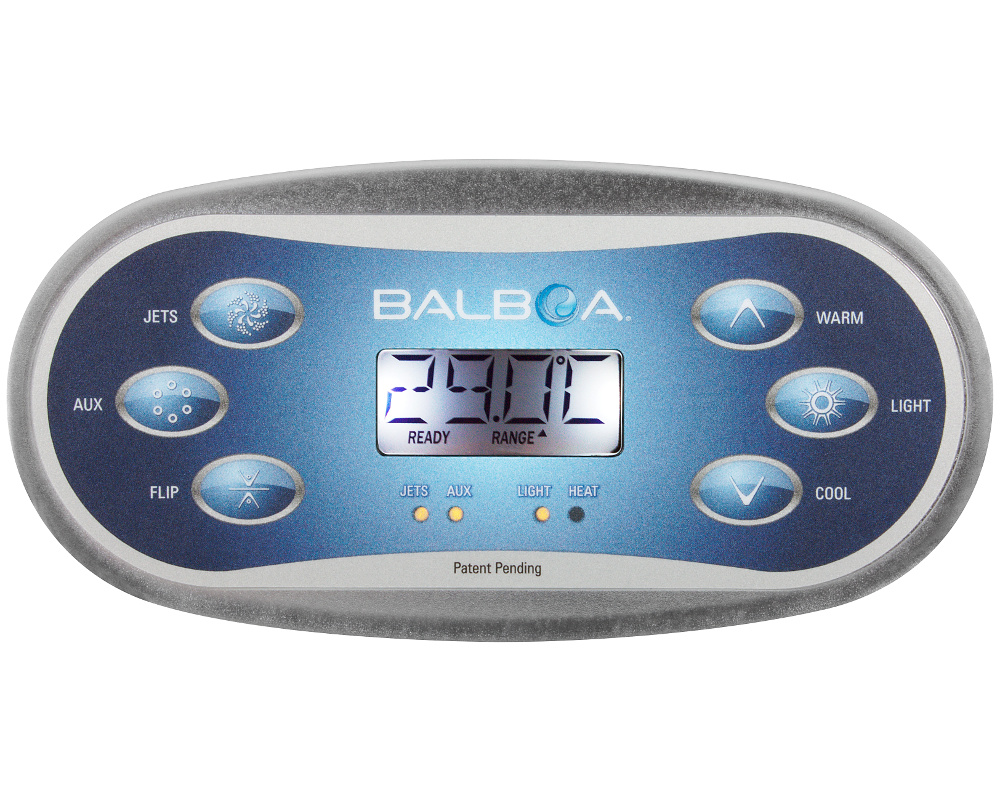

Balboa TP600 CE control panel

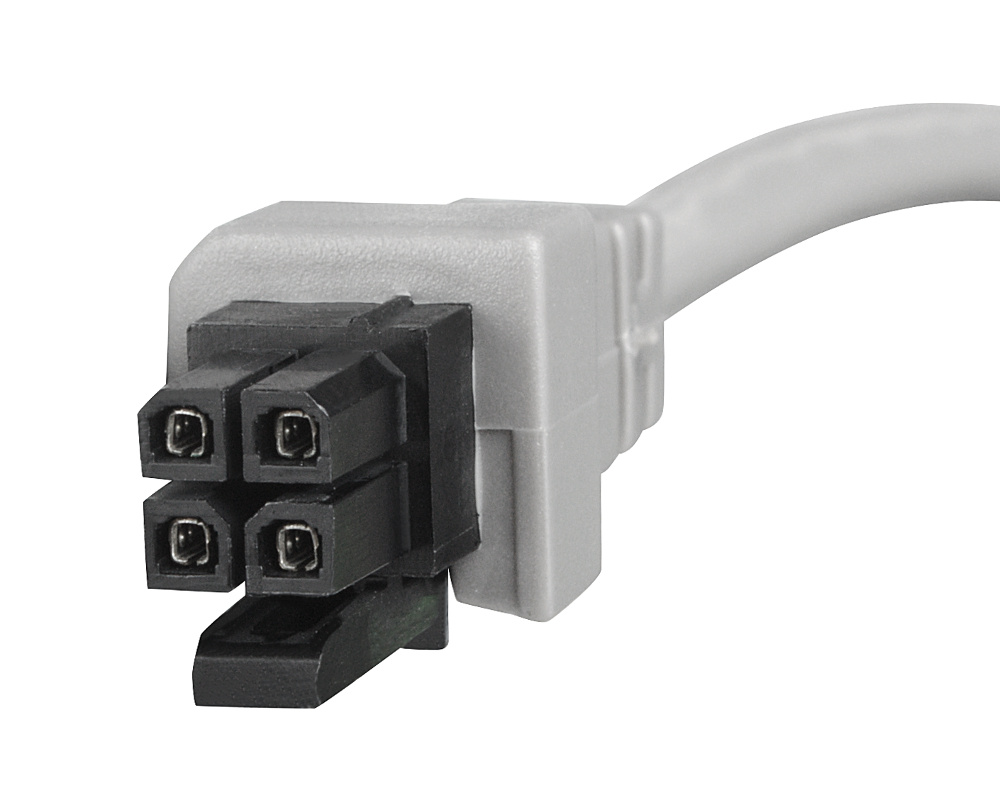

The TP600 CE keypad is compatible with the Balboa BP200G1, BP200UX, BP600, BP6013G1, BP6013G2, BP6013G3, BP2000 and BP2100G1 control systems. It has a 170 cm cable and a 4-pin plug (see photo).
It is supplied for most key configurations without its self-adhesive overlay, which must be purchased separately in the standard version or for spas Wellis and MyLineSpa.

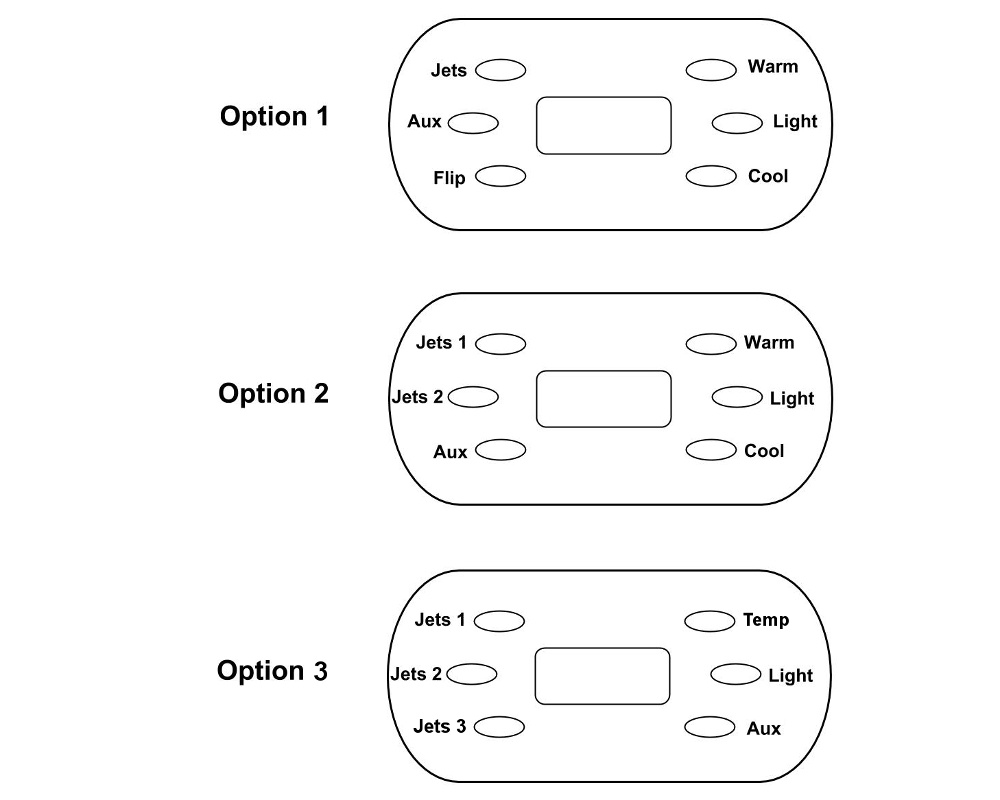

The keypad + overlay with key configurations "Jets 1, Jets 2, Jets 3, Temp, Light, Aux" is available.
Dimensions
Keypad: 180 x 89 mm
Drill size: Either drill three overlapping 60 mm holes, or cut out a 15 x 6 cm rectangle
Cable length: approximately 170 cm
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Option 1: G8460,replaces 55676-14, 50335-08, 50014-05 and 55673-14
Option 2: 50335-08
Wellis : ACM0542
Marquis Spas : 650-0680
Sunrise Spas : R6021701
