Balboa BP200UX control system

Only 1 in stock
309,00€
incl. 20% VAT
Quantity:
Balboa BP200UX control system - Click to enlarge
Balboa BP200UX control system - Click to enlarge
Balboa BP200UX control system - Click to enlarge

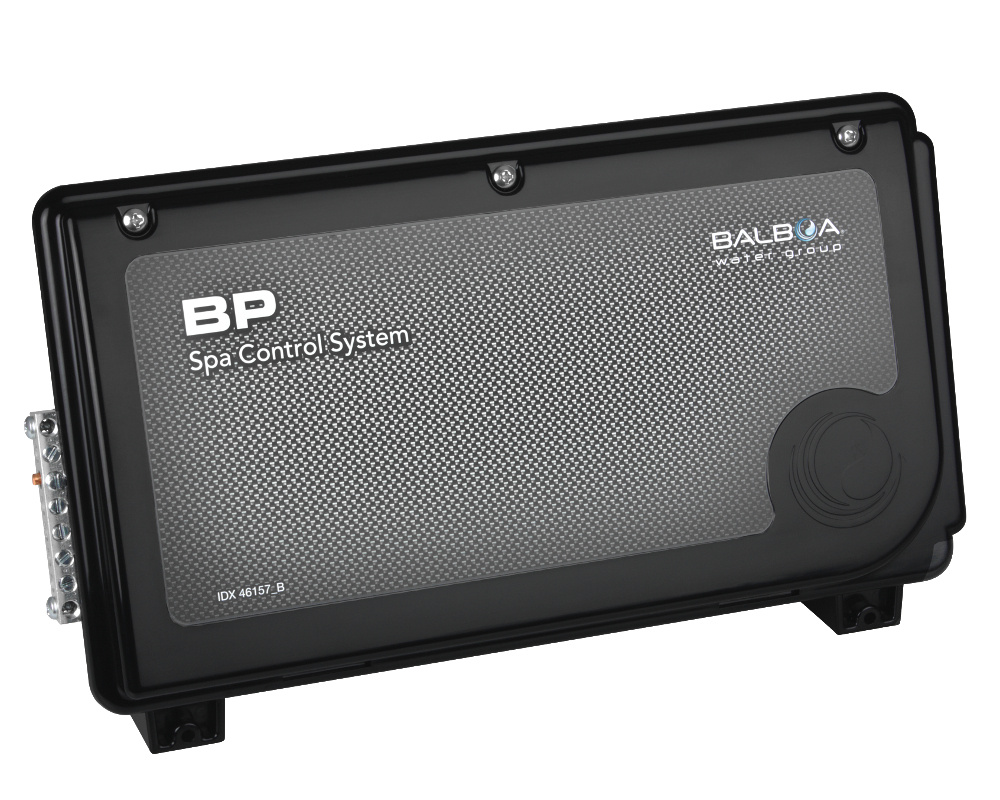

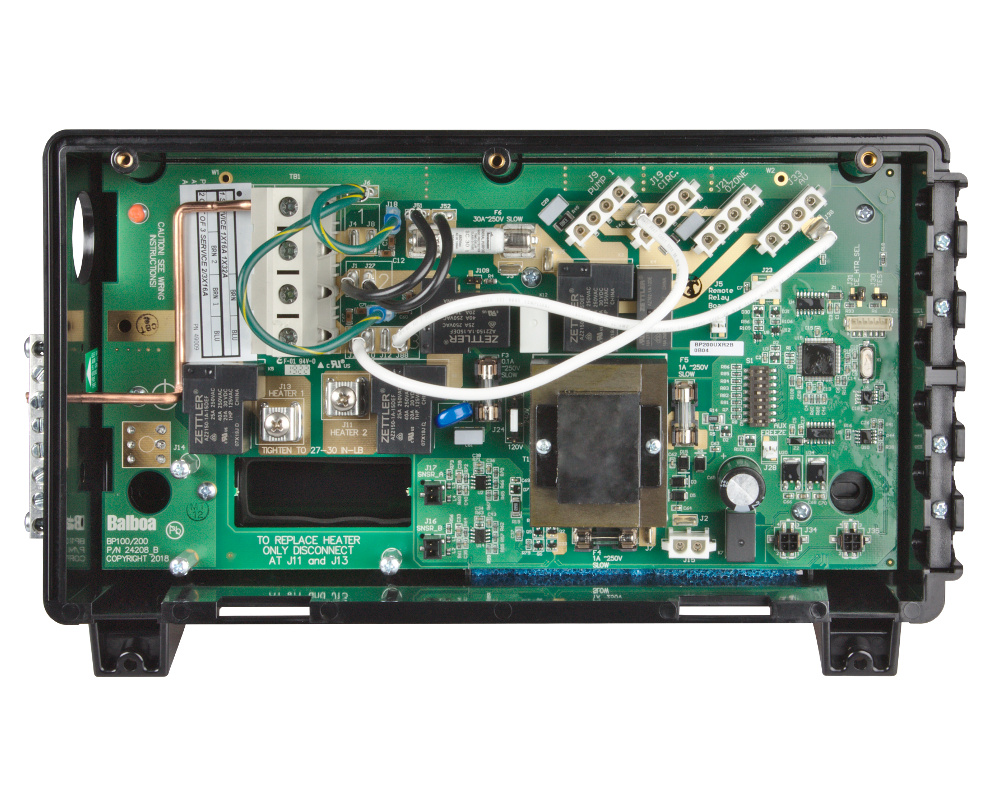

The compact BP200UX control system is ideal for installing in tight spaces. Like the GS100, the BP200UX is a little different from Balboa's GS, GL and BP control boxes because it does not have an integrated heater. You can install it with a separate heater, which is available in 2 kW or 3 kW versions.

Besides the heater, the BP200UX can manage the following equipment:

  • Either a circulation pump and a single-speed pump 1, or a two-speed pump 1
  • Blower with an expansion board
  • Ozonator
  • Underwater lighting
  • Sound system

The BP200UX comes complete with an expansion board installation kit to add a blower or an additional single-speed pump, if required. These expansion cards are only compatible with the BP200UX, and not with other Balboa systems, including the BP200G1.

The BP200UX uses the latest version of Balboa's famously-reliable M7 system, and works with all of Balboa’s TP and SpaTouch 1 & 2 panels. It is also compatible with the Wi-Fi module that allows you to control your hot tub from your Android or iOS smartphone.

The M7 technology eliminates pressure switches or flow switches and uses Balboa M7 temperature sensors.

Dimensions
Height: 211 mm
Width: 321 mm
Depth: 161 mm

Compatible keypads
TP200T, TP200W, TP260T, TP260W, TP400W, TP400T, TP500, TP600, TP800, TP900, spaTouch square, oval, version 2 trapezoid, version 3 and 3+

The BP200UX can be connected to two "main" keypads (with screen), but is not compatible with any "auxiliary" keypads (without screen).

Power supply
The BP200UX system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa : 59310

Documentation
