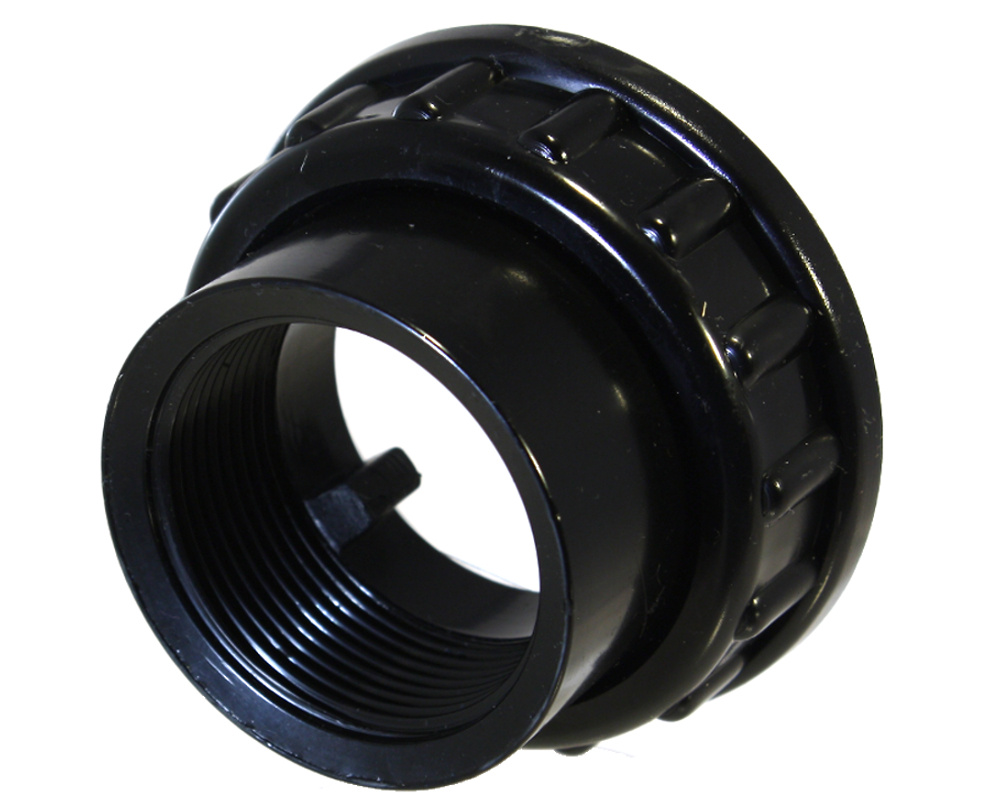

Union pump Espa 1.5"MPT

This pump union fits on Espa pumps with 65 mm diameter male screw threads, such as the Wiper0 series, for example. A 1.5 "MPT thread is screwed into the connection with a 1.5" MPT thread.

The o-ring is not provided.

Dimensions
Inner diameter of the pipe-side screw thread: 48 mm
Inner diameter of the pump-side ring: 63 mm

References
Espa: 10510-464
