Koller 0.54 HP circulation pump, center suction

Only 5 in stock
205,50€
incl. 20% VAT
Quantity:
Koller 0.54 HP circulation pump, center suction - Click to enlarge
Koller 0.54 HP circulation pump, center suction - Click to enlarge
Koller 0.54 HP circulation pump, center suction - Click to enlarge
Koller 0.54 HP circulation pump, center suction - Click to enlarge
Koller 0.54 HP circulation pump, center suction - Click to enlarge
Koller 0.54 HP circulation pump, center suction - Click to enlarge

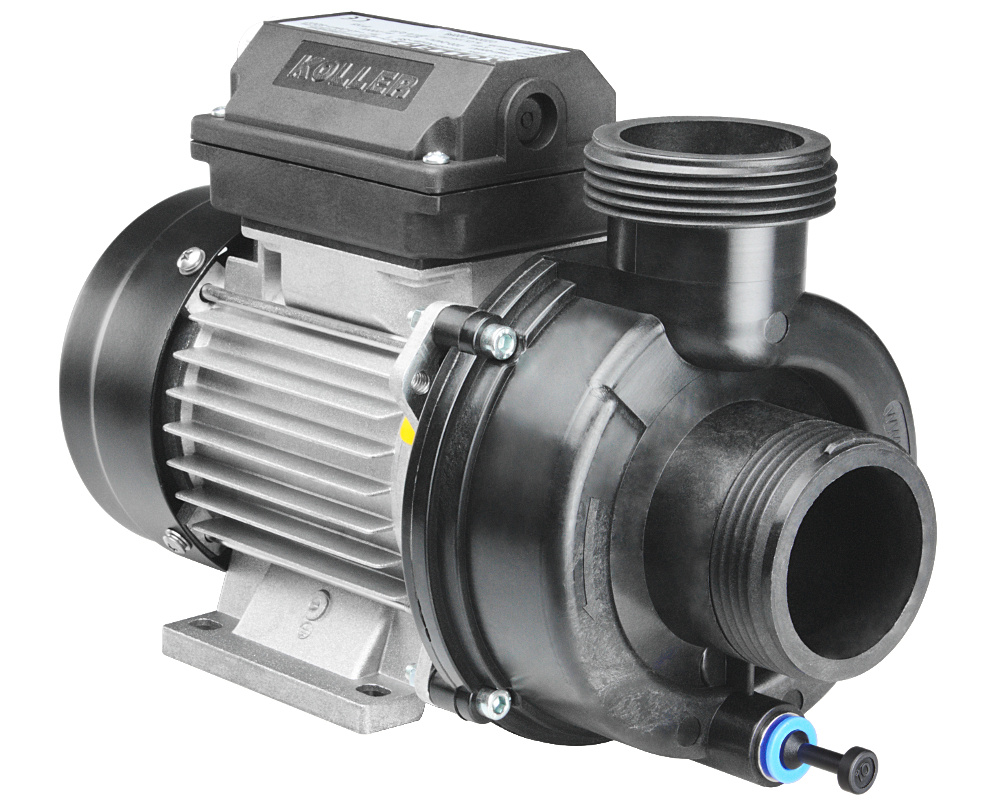

This Koller 0.54 HP circulation pump is found in many European spas.

The drain hole situated at the bottom of the faceplate is closed with a plug which is available as a spare part.

We also stock other Koller circulation pumps with center suction from the same series including the 0.16 HP, 0.27 HP and 0.40 HP, as well as the self drain 0.27 HP and 0.54 HP models.

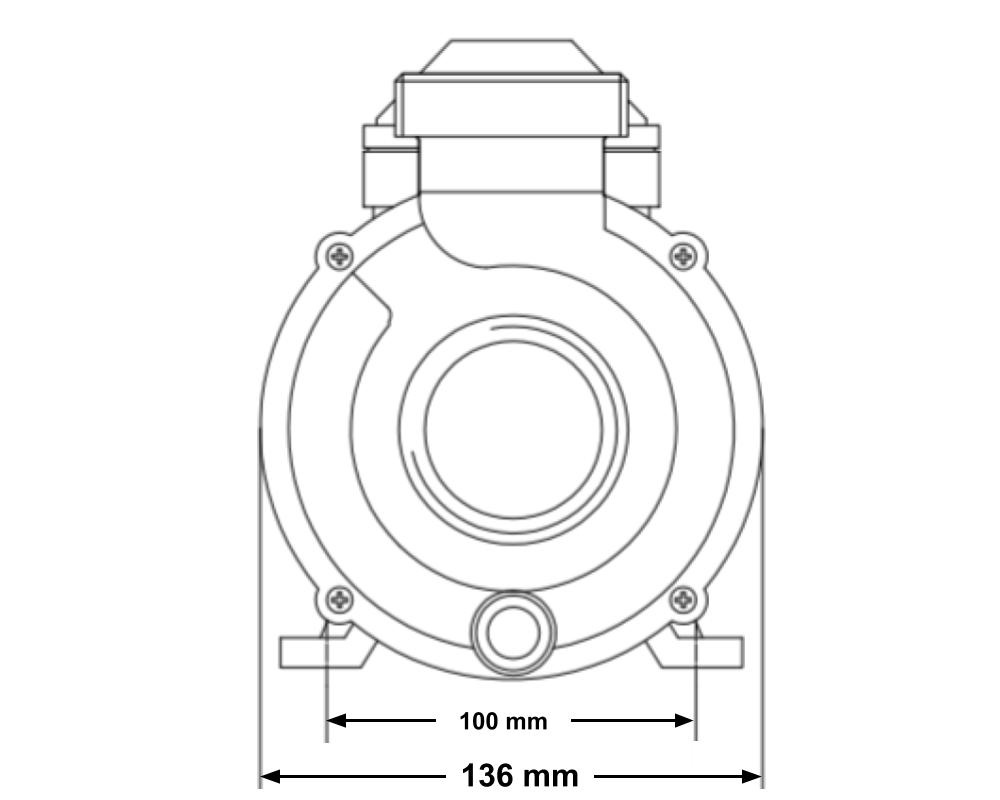

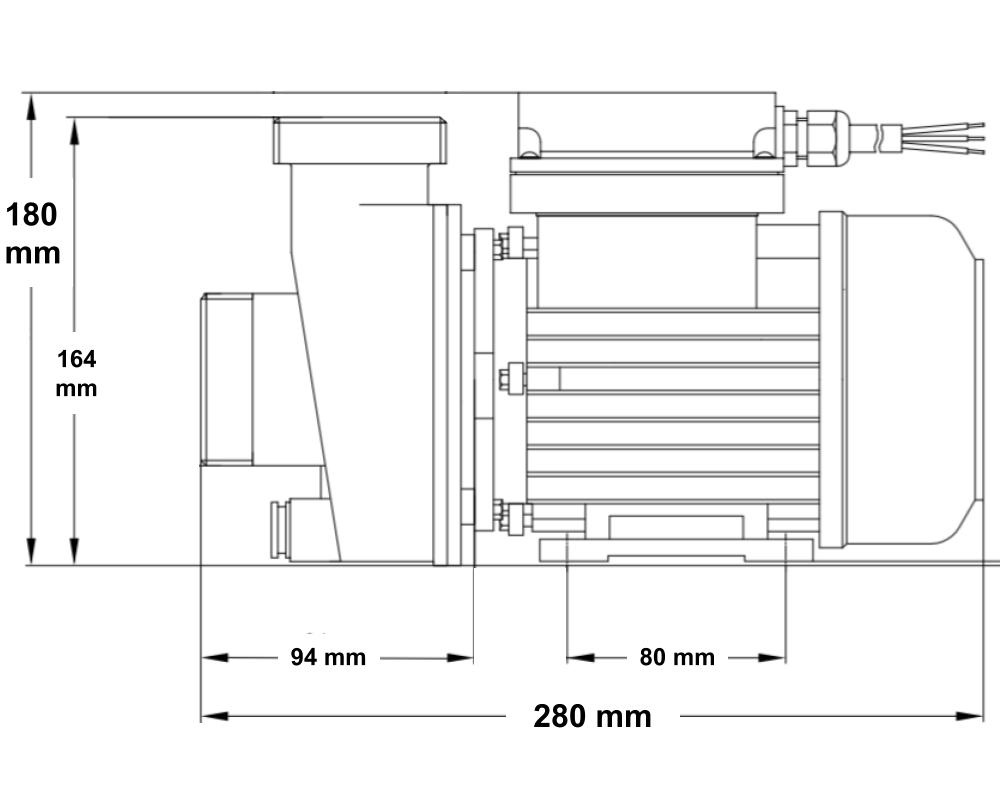

Dimensions
Length: 280 mm
Width: 136 mm
Height: 180 mm

Technical specifications
Power: 400 W (0.54 HP)
Speed: 2800 rpm
Maximum flow rate: 345 litres/minute

Connections
Thread diameter: 62 mm (1.5-inch MBT)
The pump unions are not included, but are available separately. We sell unions for 1.5-inch pipe

Cables and plugs

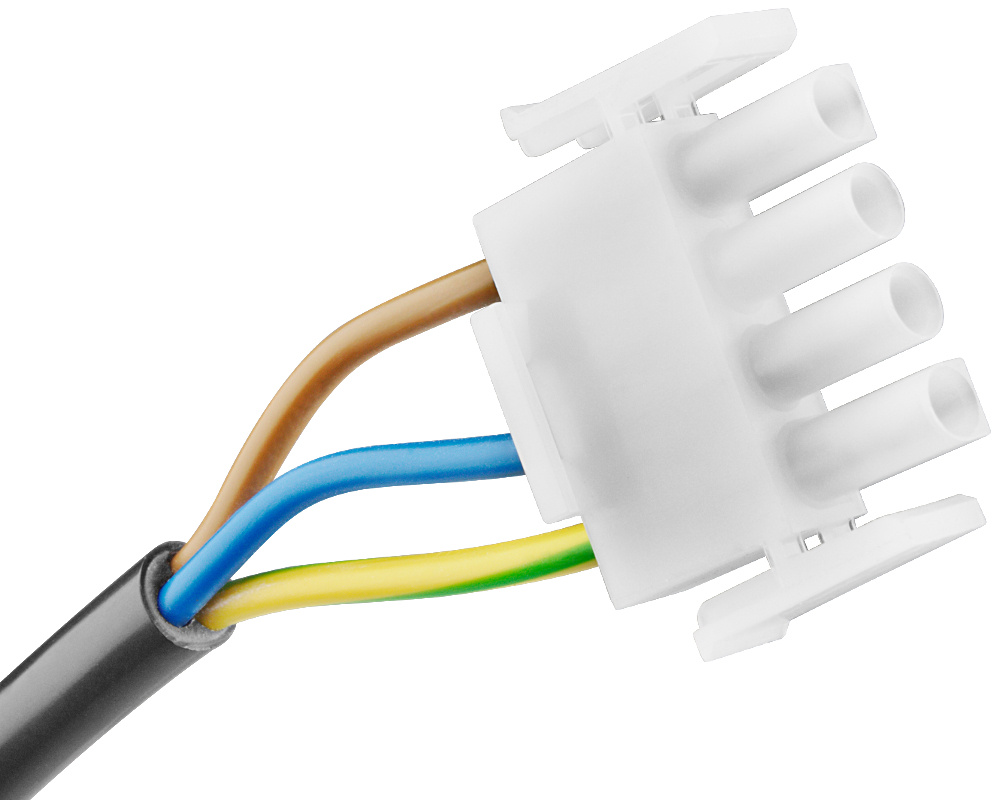

The Koller 0.54 HP circulation pump is delivered pre-cabled with an AMP plug (length 3 m). You can also choose to have it pre-cabled by our team with a mini J&J plug.

Warranty
2-year Tubs Parts warranty

Part numbers
Koller: 136-400 WC

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
