Balboa heat pump pack Clim8zone + BP2100 G1 + spaTouch 3

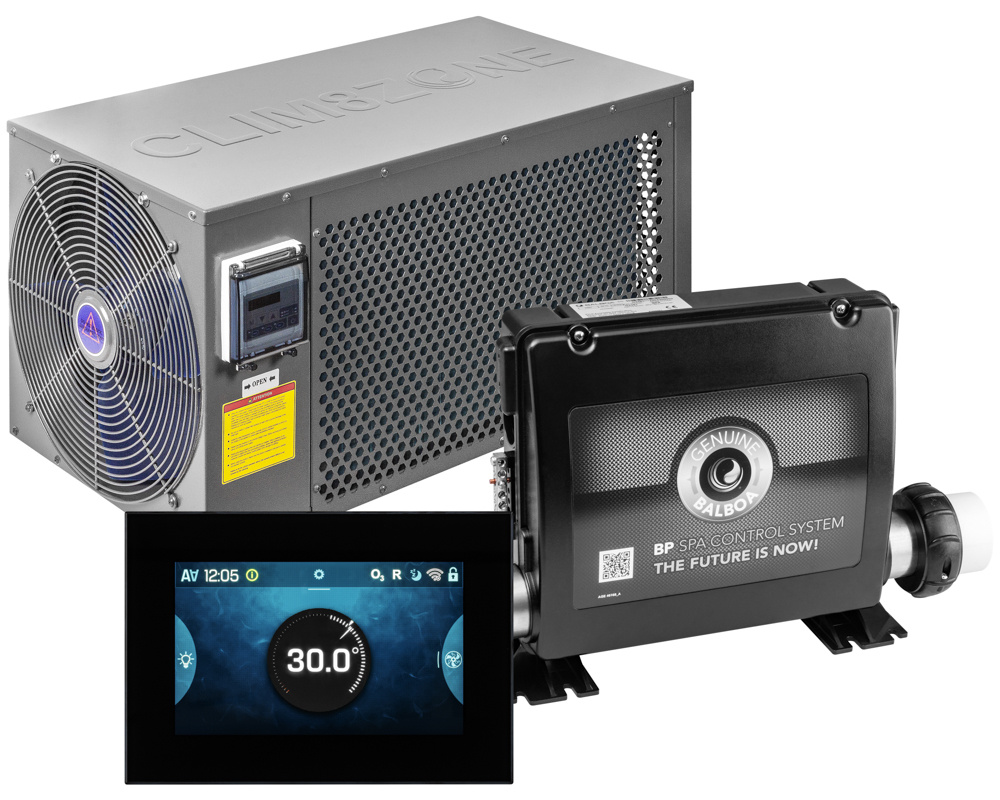

This Balboa heat pump pack features the BP8 control system, the Clim8zone heat pump and the spaTouch4 keypad. It is the perfect solution to equip a new spa, or to upgrade an existing spa with a heat pump to reduce its energy consumption. The pack includes all the main components to control and heat your spa with one of the most economical, compact and quiet reversible heat pumps on the market.
The Balboa BP8 control system, can manage a circulation pump, a pump 1 which can be either single-speed or two speed and up to 23 single-speed pumps, a blower, an ozonator and an underwater light. It also includes a built-in 3 kW heater which can be used in conjunction with the heat pump if necessary.
Connect the BP8 to the Clim8zone heat pump with its data cable, where it will be automatically detected. Clim8zone has heating, cooling and automatic modes to heat or cool the water in any season, on spas of all sizes, up to swim spas. No additional electrical circuitry is required, as the Clim8zone works directly from the spa's control system.
Now you can directly manage the control system and the heat pump with the spaTouch4 keypad, the fourth in Balboa's generation of 100% touchscreens, which includes the ControlMySpa WiFi interface module. This touchscreen keyboard includes the latest capacity touch technology, and remains perfectly responsive in wet conditions. Its 5" touch screen also has a new user interface to make navigation easier and more fluid.
Dimensions of the BP8
Height: 310 mm
Length of heater: 330 mm, without fittings
Length of heater: 430 mm, with fittings
Depth: 125 mm
Heater connection: 2-inch (clamping rings and gaskets supplied)
Dimensions and performances of the Clim8zone
Width: 794 mm
Total height: 430 mm
Depth: 474 mm
Heat pump plumbing connections: 1.5-inch (condensation drainage pipe and clamp, two unions with gaskets, and a wrench to tighten them included)
Performances
| temperatures | Operating speed | Heating capacity | Consumed power | Coefficient of performance (COP) |
| 27°C | Min. | 1,92 kW | 0,13 kW | 14,8 |
| Max. | 7,5 kW | 1,15 kW | 6,5 | |
| 15°C | Min. | 1,42 kW | 0,20 kW | 7,1 |
| Max. | 5,8 kW | 1,15 kW | 5,0 |
The cooling capacity of the Clim8zone II when operating in cooling mode is 1.5 kW at an ambient temperature of 35°C.
Length: 146 mm
Screen: 5" diagonal
Width: 102 mm
Thickness (screen): 11 mm
Depth: 23 mm
Cut-out area: 128 x 83 mm
The heat pump must always be stored, transported and installed in a vertical position. Never lay it down or turn it upside down, as this will void the manufacturer's warranty.
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Boîtier BP8 : G3381
Clim8zone heat pump : 57255-06
spaTouch 4 keypad : 57542
