Waterway Mini Storm Gunite tee body assembly

Name: Complete tee body assembly
Brand: Waterway
SKU: 4388
Price: 42 EUR
Availability: InStock

In stock

42,00€

incl. 20% VAT

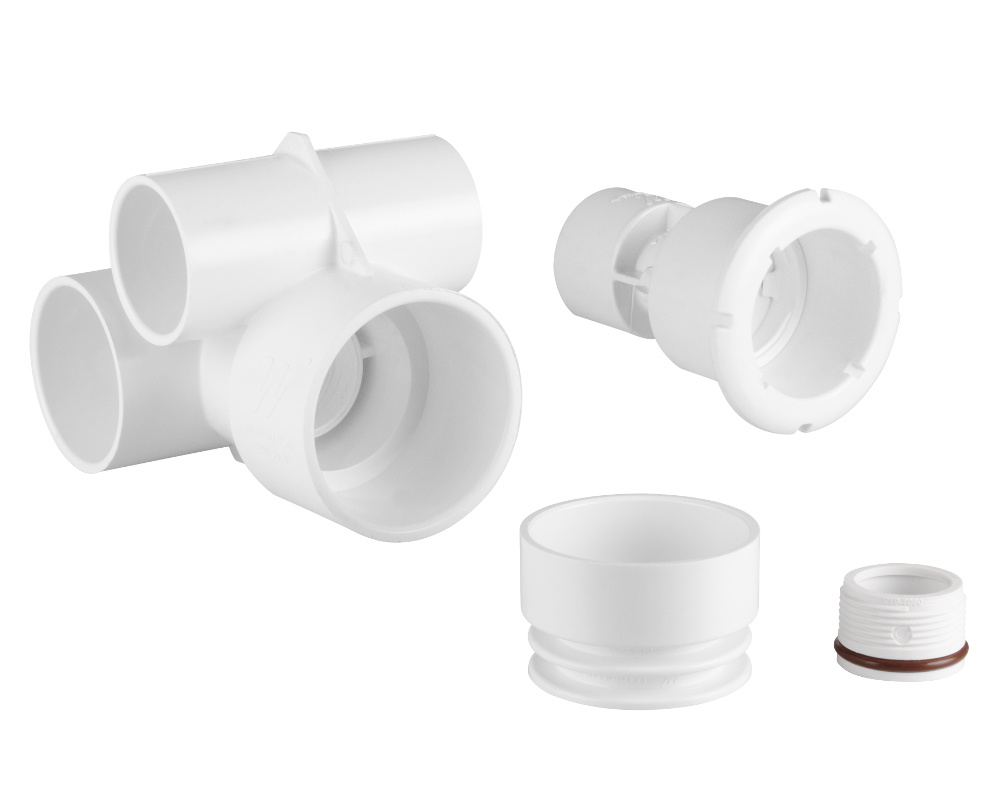

Waterway Mini Storm Gunite tee body assembly - Click to enlarge

This Waterway Mini Storm Gunite complete straight body assembly, specially designed for concrete spas, includes a tee body, a wall fitting, a threaded retainer ring and a jet niche adapter.

Don't forget to add 2.5-inch and 1-inch pipes to your installation !

All in the Mini Storm thread-in jets are compatible with this kit by inserting them into the wall fitting.

Water and air pipe connections
Water : Internal diameter 60 mm, to connect a 2-inch pipe
Air : Internal diameter 48 mm, to connect a 1.5-inch pipe

Installation

A 2.5-inch pipe must connect the tee body to the jet niche adapter and the wall fitting.

A 1-inch pipe connects the threaded retainer ring screwed to the bottom of the tee body to the wall fitting water inlet.

For more information on designing a concrete spa, see these diagrams.

Part numbers
Waterway : 229-1010

Documentation
