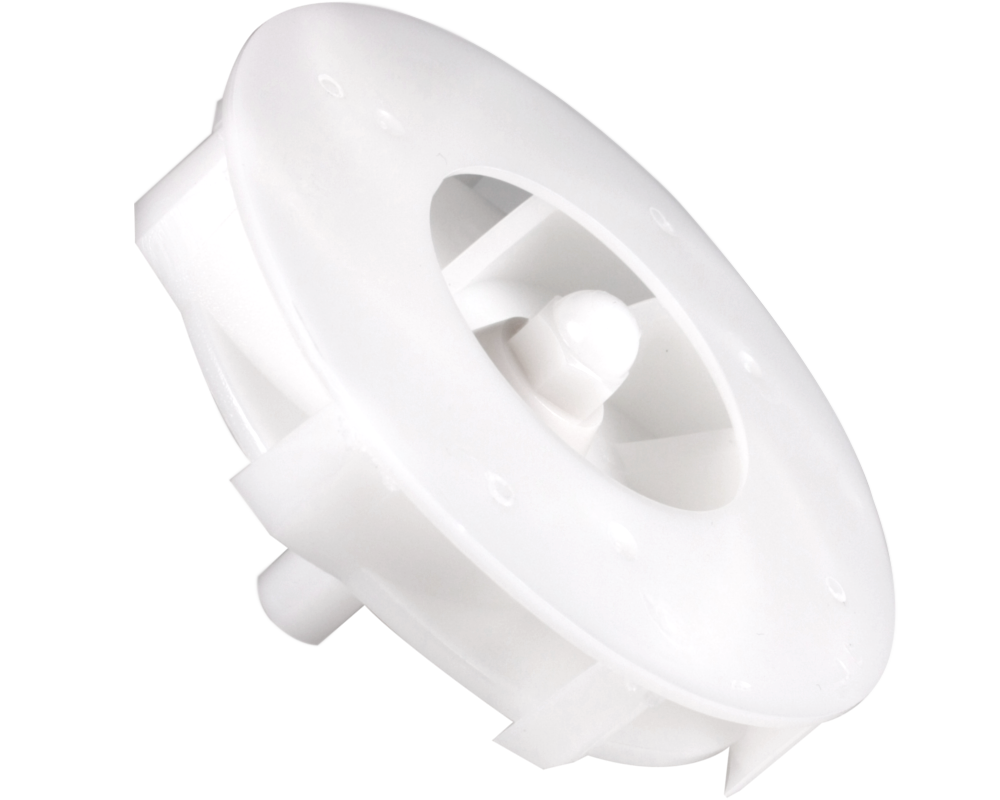

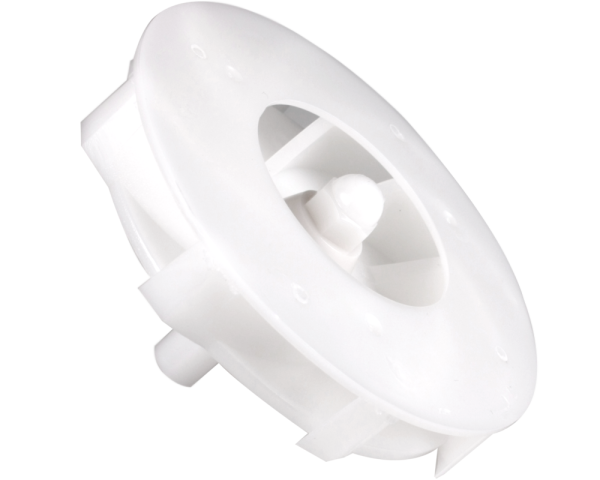

Impeller for SIREM PBL + PB1C8024L1B pump

This impeller replaces the one found in the SIREM reference PBL single- and two-speed pumps, and on Aquamarine's PB1C8024L1B two-speed pump manufactured after July 2018. It is not compatible with other pumps.

Check the diameter of the "sleeve" of your old turbine. This model has a 12 mm diameter, but there is a other impeller (now discontinued and replaced by the semi-open model) with a larger sleeve, which has a diameter of 16 mm.The latter is compatible with the PB reference pumps and Aquamarine's PB1C8024L1B two-speed pump manufactured before July 2018.

We strongly suggest that you replace the wet end seal at the same time as the impeller.

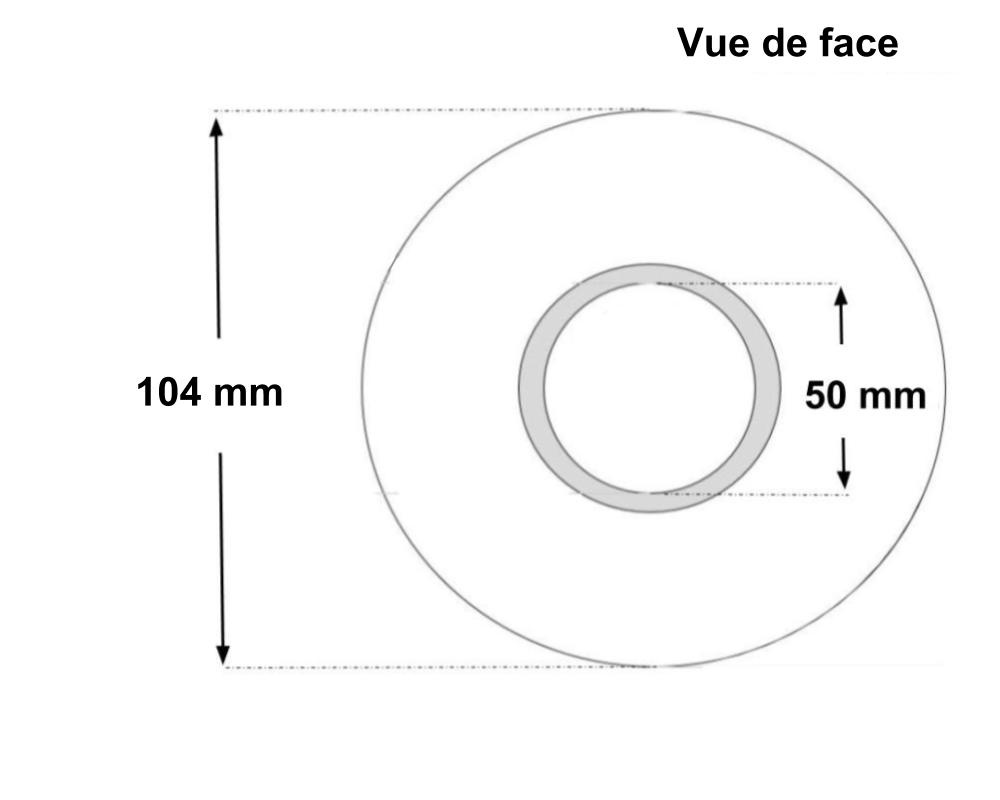

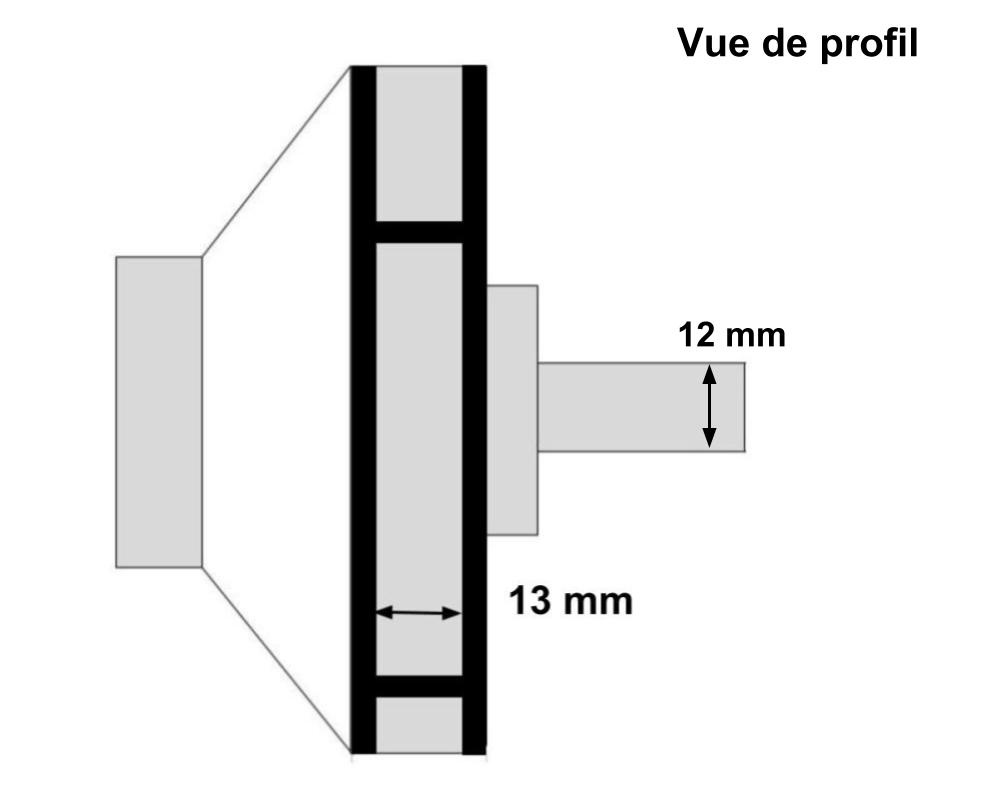

Dimensions
Overall diameter: 104 mm
Outside diameter of the handle: 12 mm
Inside suction diameter: 50 mm
Blade thickness: 13 mm

Part numbers
SIREM : 2010140001
