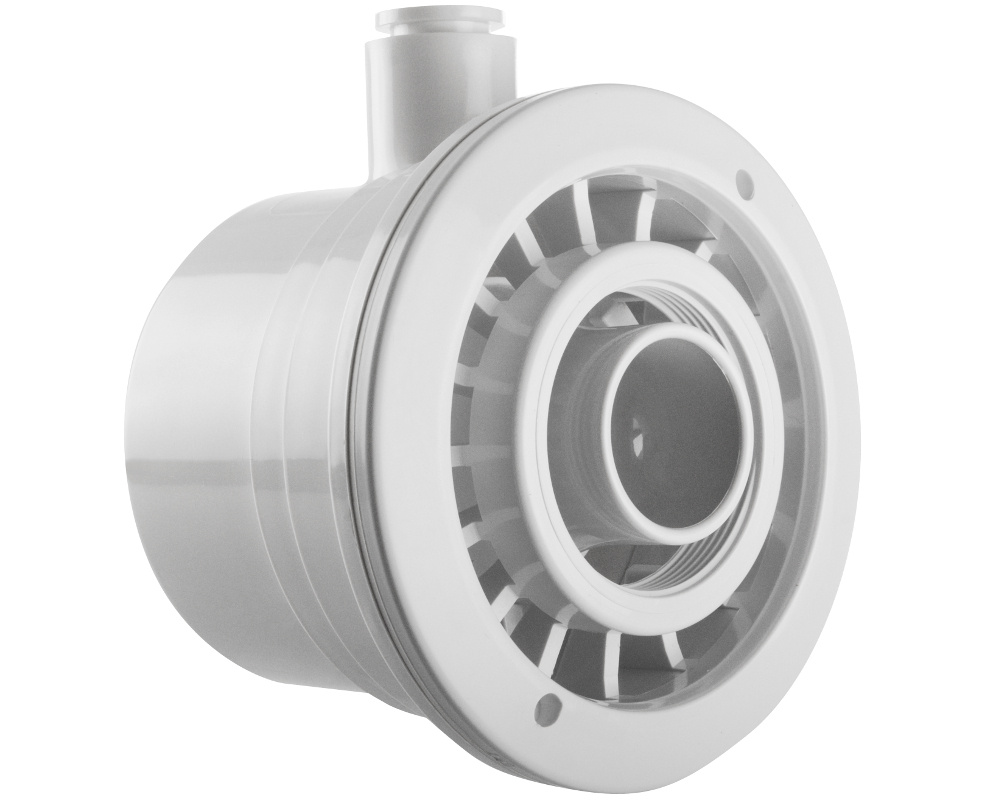

Hayward Turbo Jet

This jet is designed for concrete (gunite) hot tubs, and gives a powerful massage. You should plan for a flow rate of between 6 and 15 m³/hour for this jet alone.

For more informations about concrete spas you can have a look on standard drawings

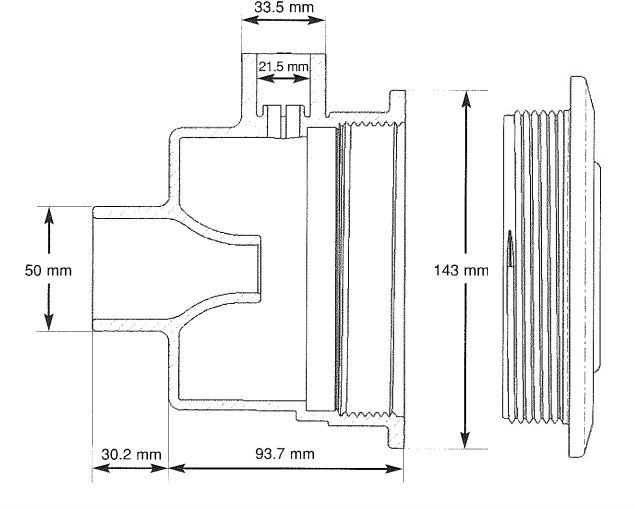

Dimensions
Face diameter: 143 mm
Length of socket: 124 mm
Total length: 149 mm

Hose connections
Water: Either in 50 mm using a sleeve. Either in 1.5 inch with a 50mm to 1.5-inch adapter adapter.
Air: 1/2 inch flexible can be used to seal the air inlet with a supplied cap.

Part numbers
Hayward : SP1450TE
