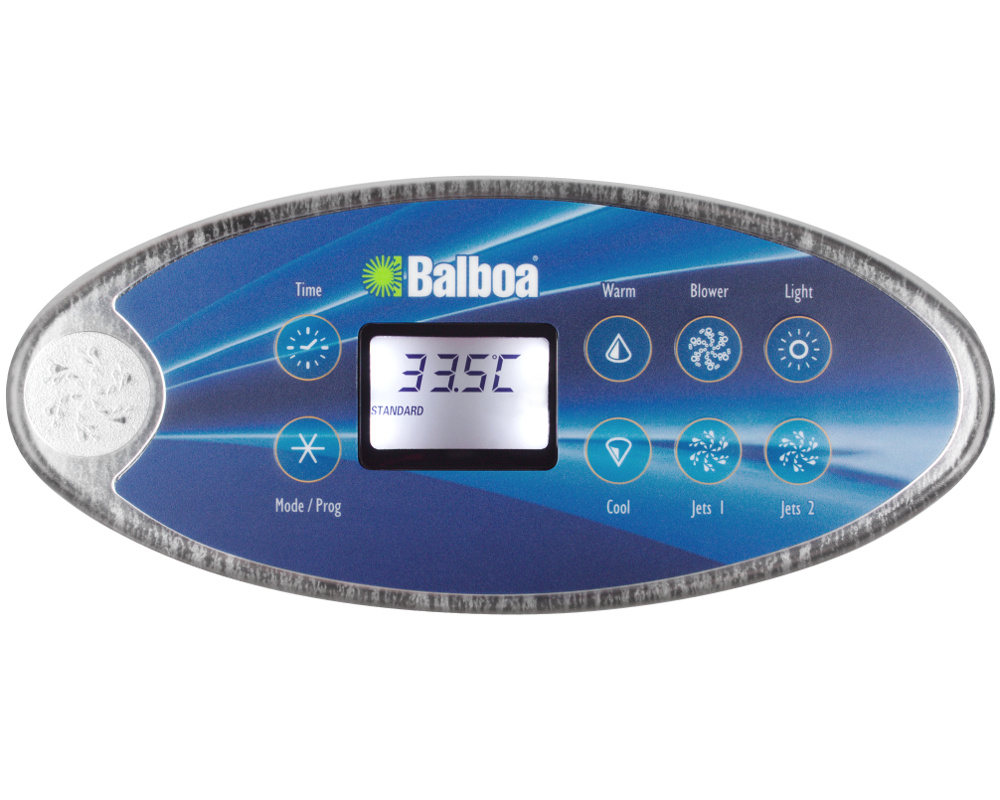

Balboa VL802D control panel

This control keyboard is no longer manufactured by Balboa. Please contact us for any replacement requests.

This keypad is compatible with the Balboa GS501DZ, GS510DZ, GS520DZ and GS523DZ control systems.

It has 8 buttons:

• Temperature up
• Temperature down
• Jets 1
• Jets 2
• Blower
• Light
• Time
• Mode

Dimensions
Keypad: 262 x 117 mm
Cut out area: 56 mm x 162 mm
Cable: 2 m

Compatibility
GS501DZ, GS510DZ, GS520DZ and GS523DZ

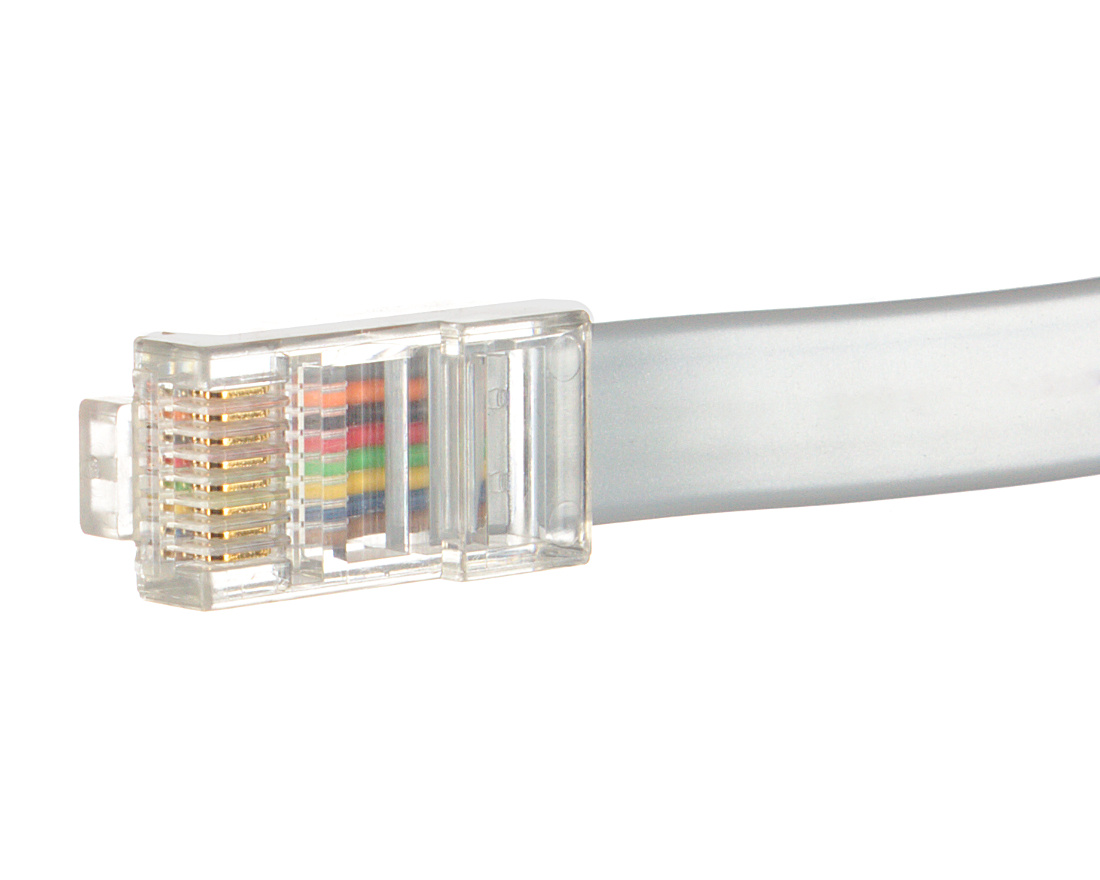

This keypad uses a RJ45 plug (see photo).

Balboa part numbers
Keypad with overlay: 54528-02
Keypad without overlay: 54562
Wellis : ACM0192
