Traversee de paroi Hayward beton

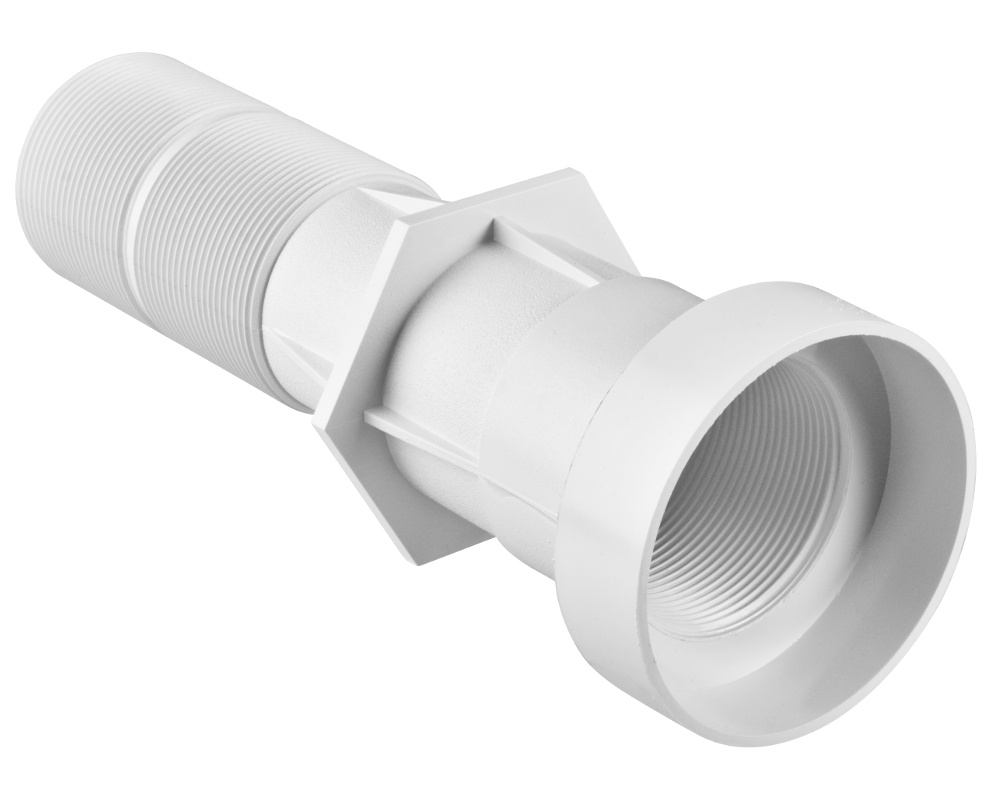

This Hayward wall fitting is designed for concrete pools and spas. You can screw in a jet (part numbers 3318/18 or 3302/03), or an underwater light (part number 3429). It has a hexagonal sealing collar to hold it in place in the concrete wall, and can be cut to a minimum length of 200 mm if necessary, depending on the thickness of the concrete.

This part is made from white ABS plastic.

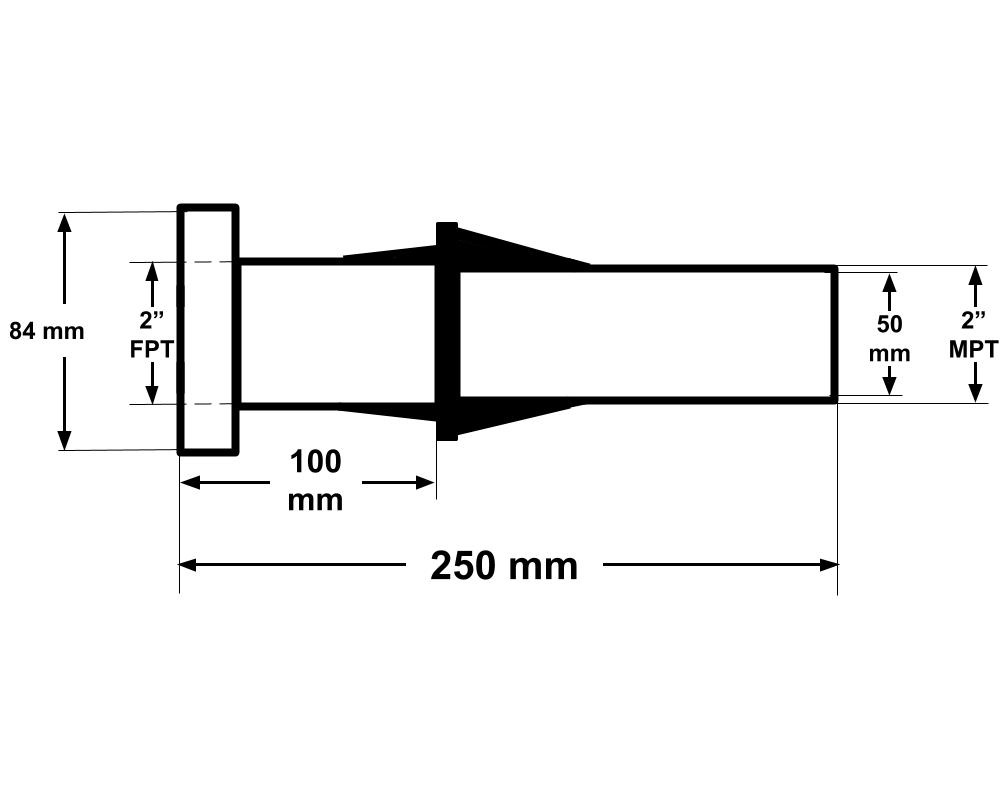

Dimensions
Total length: 250 mm, with hexagonal sealing collar
Inside diameter of front panel: 84 mm

Connection
Pipe connection to be screwed or glued : 2-inch MPT or 50 mm female
Jet/LED connection: 2-inch FPT

Part numbers
Hayward: 3352
