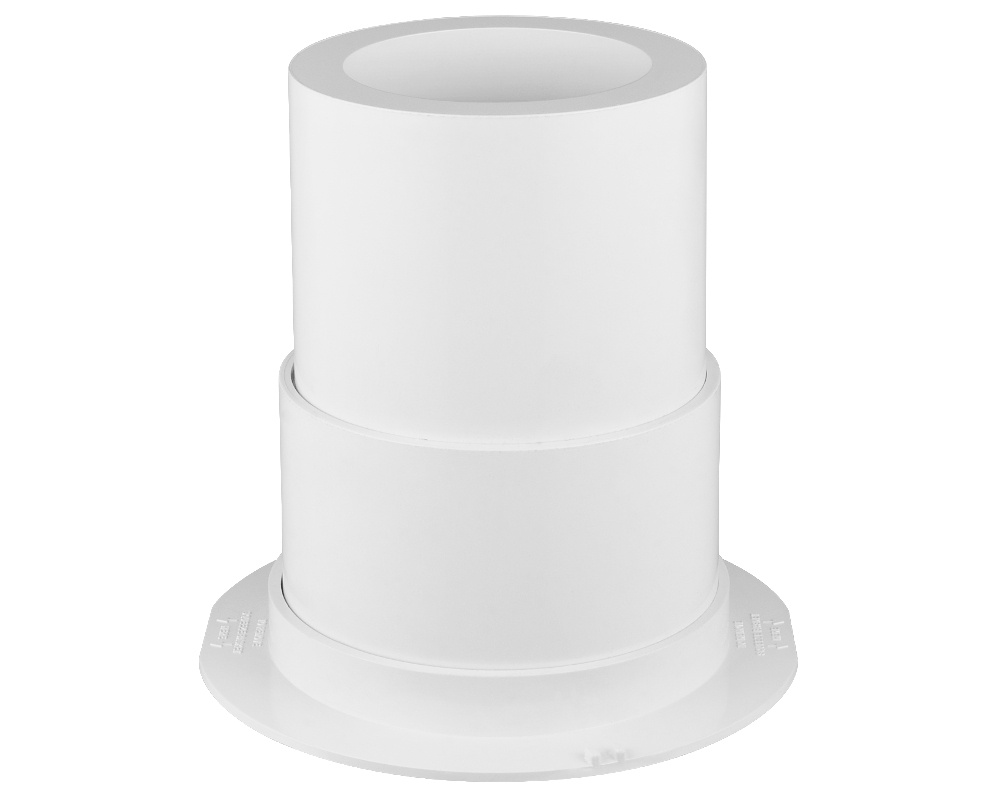

Pentair Rainbow Dynamic IV skim filter float

This telescopic skimmer is a spare part of the Pentair Rainbow Dynamic IV (DFM, DFML) skimmer.

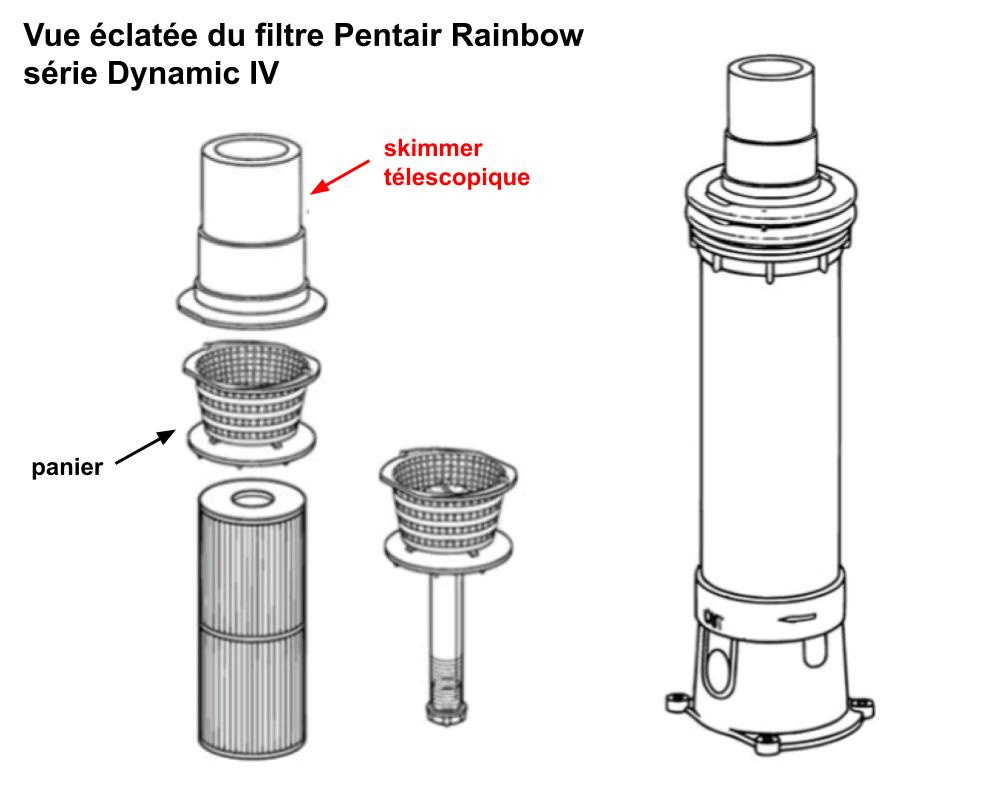

This telescopic tube is placed in between the basket and the lock ring. The top of the tube floats in such a way that it skims the surface water, which passes down into the filtration system.

This weir is only available in white.

The Rainbow basket with diffuser is also available separately.

Dimensions
Upper outside diameter: 99 mm
Upper inside diameter: 72 mm
Lower outside diameter: 112 mm
Lower inside diameter: 104 mm
Height (folded): 85 mm
Height (unfolded): 155 mm

Part numbers
Pentair Rainbow : 172660, 17-2660, R172660DG
4-00-0088, 17-110-1062
