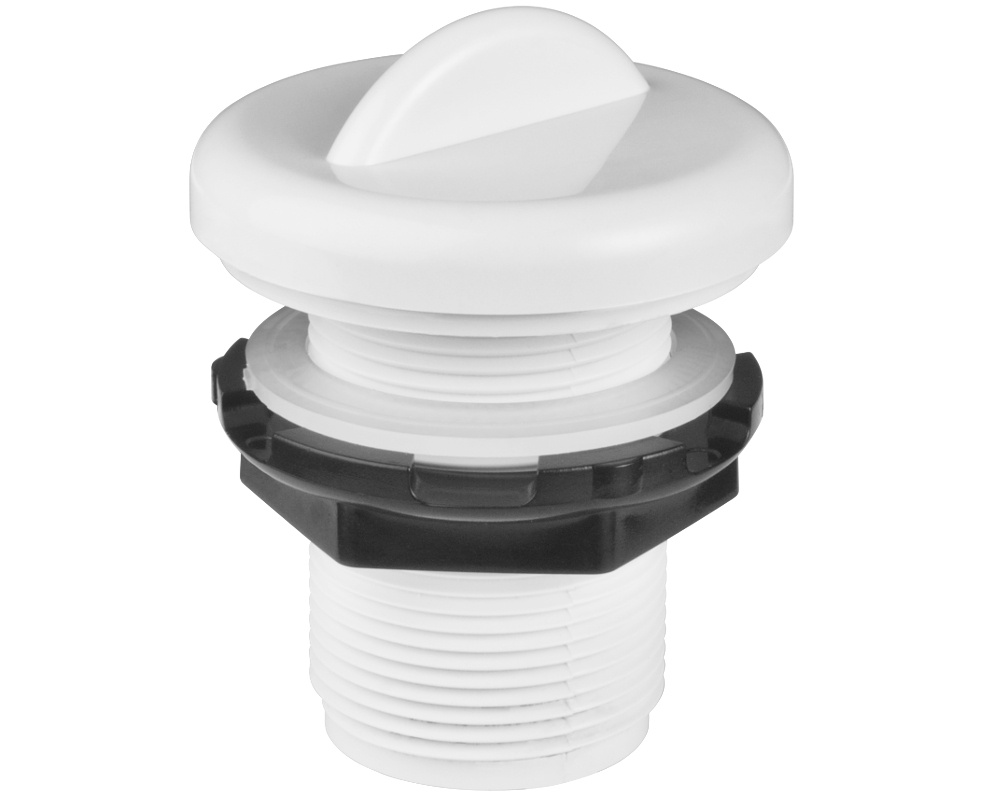

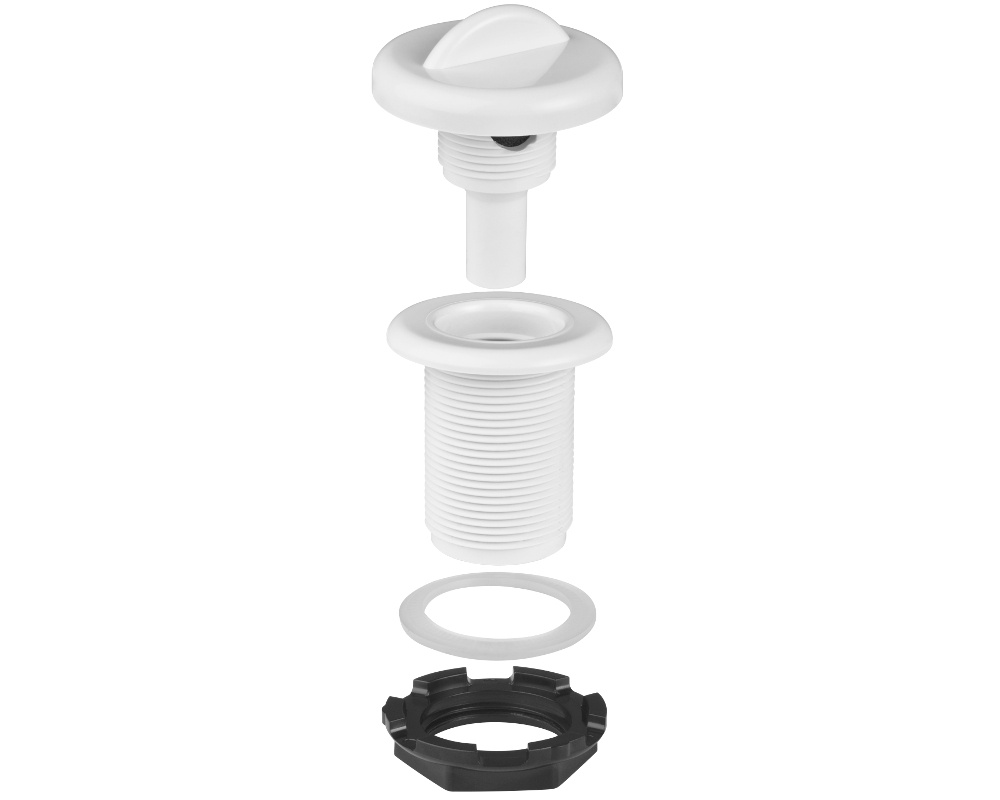

ITT 1" air control valve

This ITT HydroAir valve controls the suction of air into the jets by the Venturi effect. It connects to 1" air pipe.

The handle is also available as a spare part.

This type of valve is especially recommended for use in a concrete spa, when it is necessary to use venturi valves that suck in air from the top, not from the sides (which will be embedded in concrete).

Dimensions
Internal diameter of the pipe connection : 3 mm
Hole diameter for mounting : 42-43 mm
Length (without the handle): 70 mm
Outside diameter of the thread: 41 mm
Diameter of the handle: 68 mm

Part numbers
ITT HydroAir: 10-2100
