DEL AOP Spa AquaNova ozonator + UV-C

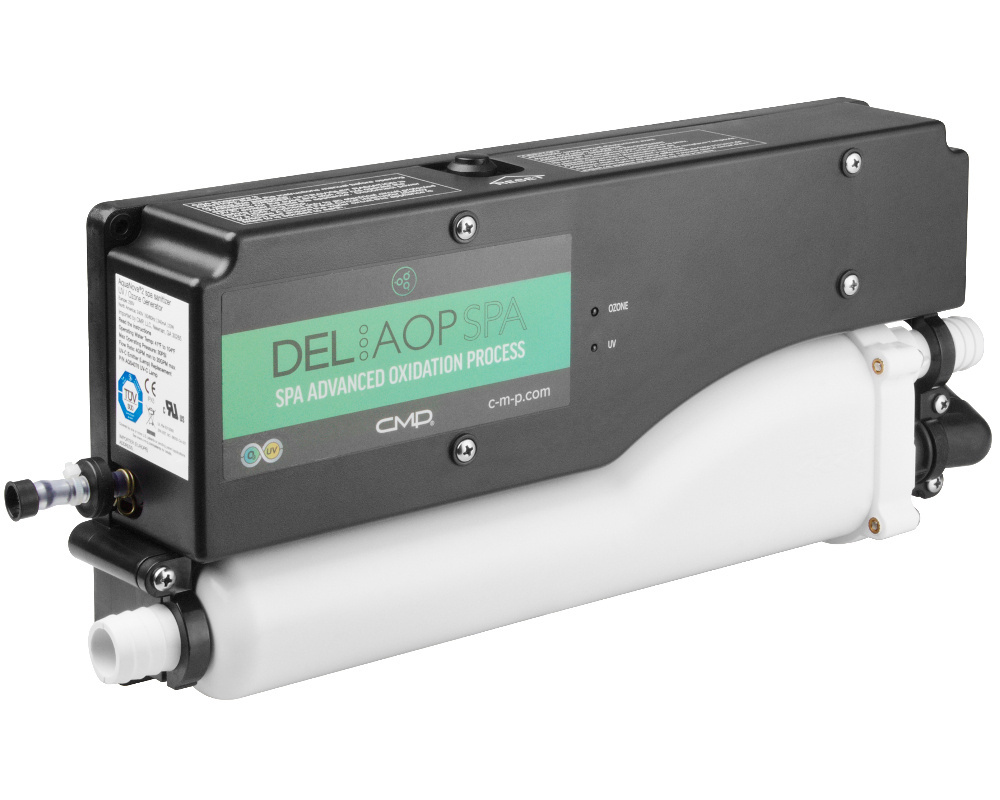

The DEL AOP Spa AquaNova 2 is a combination ozonator and UV-C disinfection system with a built in venturi injection system. It is effective for hot tubs and pools with a volume of up to 20,000 litres.

The ozonator provides a basic disinfection, but its main role is to oxidize sweat and residues from other treatments. It is therefore complementary to a chemical treatment and does not replace it. AOP systems also destroy and prevent chloramines—formed when chlorine reacts with sweat or urine—that cause unpleasant smells, eye, and skin irritations which dramatically increases water clarity and improves the hot tub experience.

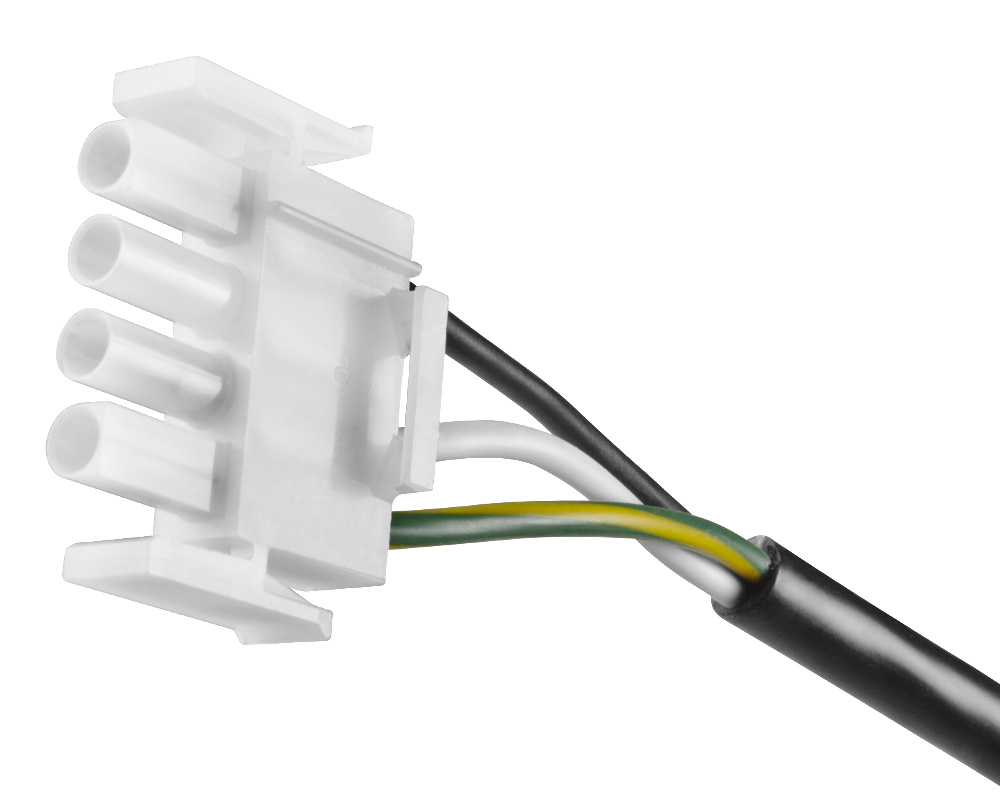

This ozonator comes with two ozone check valve and an ozone injector, and is pre-wired with a 4-pin AMP plug. We offer a J&J adapter for other systems.

LEDs indicate the correct operation of the ozonator: green when the ozonator and the UV lamp are working normally, and red in case of malfunction.

The UV-C lamp should be replaced every 10,000 hours, or when the life indicator changes from green to flashing yellow.

We recommend the AquaNova 2 as a replacement for the same product, not for a new installation. Do not hesitate to contact us for advice.

Dimensions
Box length: 318 mm
Total length: 410 mm
Length between the 2 pipe connections: 380 mm
Width: 80 mm

Technical specifications
Power rating : 23 W (240 mA)
Electrical supply : 230V, 50 Hz
Ozone production : 50 mg/hour
UV-C wavelength : 254 nm
Flow rate : 4—20 GPM (will vary with installation)
Lifespan of UV-C bulb : 10,000 hours (approximately 1 year of continuous use)

Warranty
2-year Tubs Parts warranty

Part numbers
CMP : 51184-001-909
Wellis : ACM0938
