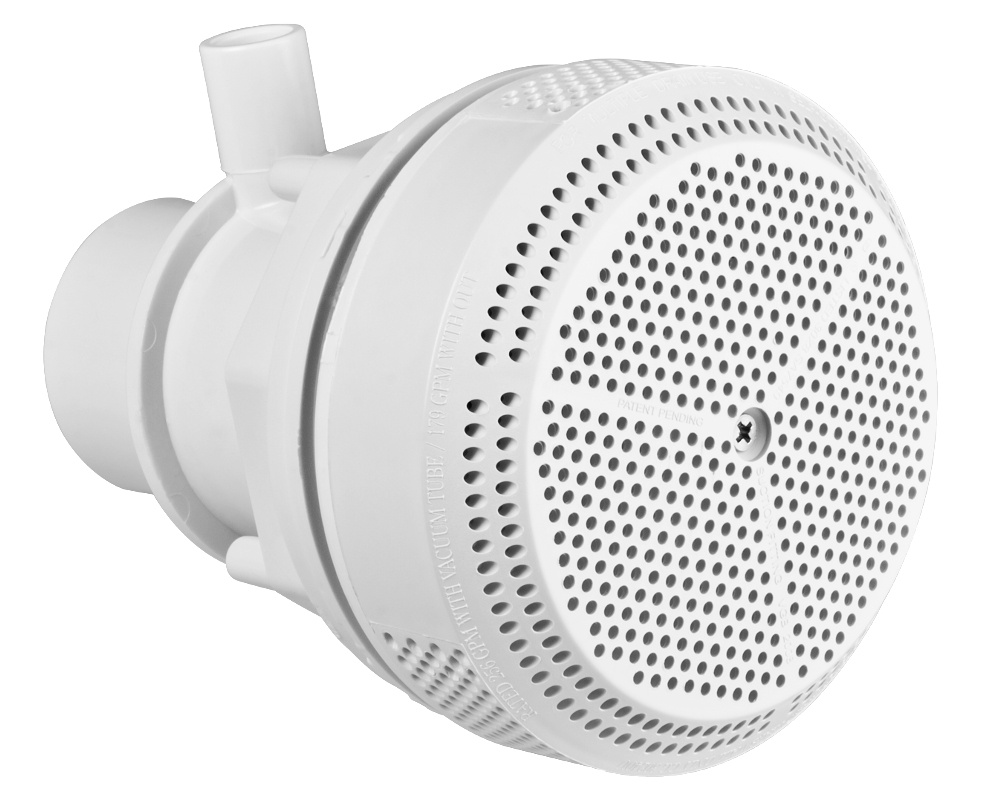

Balboa 2" suction fitting

This suction fitting, manufactured by Balboa, with a rating of 180 GPM has an anti-vortex grille and it has a male connection for a 2-inch pipe fitting. It has to be wall mounted and we strongly advise against a mounting on the spa floor.

It is delivered complete with its nut and gasket.

Dimensions
Outside diameter of the face: 124 mm
Drill diameter: 88 mm
Pipe connection: 60 mm outside diameter, or 2-inch male

Maximum flow rate
680 litres/minute
40 m³/hour or 180 GPM

Part numbers
Balboa: 39167-WH
The references GG30231U and 30Z8 SA7549 are moulded on the grille.

Installation instructions
