Balboa ML554 control panel

In stock
280,00€
incl. 20% VAT
Buttons
Quantity:
Balboa ML554 control panel - Click to enlarge
Balboa ML554 control panel - Click to enlarge
Balboa ML554 control panel - Click to enlarge

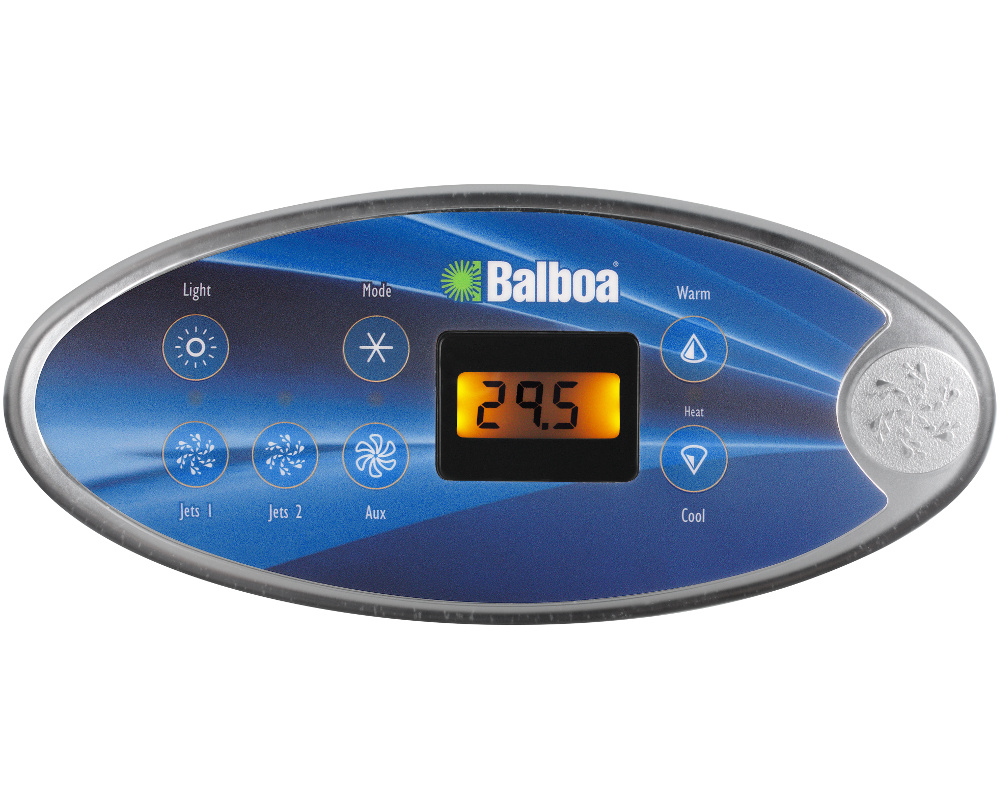

The ML554 keypad is compatible with the Balboa GL2000 M3, GL2001 M3, GL8000 M3 and GL84P control systems. Two versions are available with either a "Blower" button at the top right or an "Aux" button.

It has 7 buttons:

  • 2 buttons for temperature (up and down)
  • Light
  • 2 jet buttons
  • Aux (can be used as a third pump, or for a blower)
  • Mode/Program

The overlay is also available as a spare part.

Dimensions
Keypad: 267 x 117 mm
Cut out area : 160 x 57 mm
Cable: 2 m

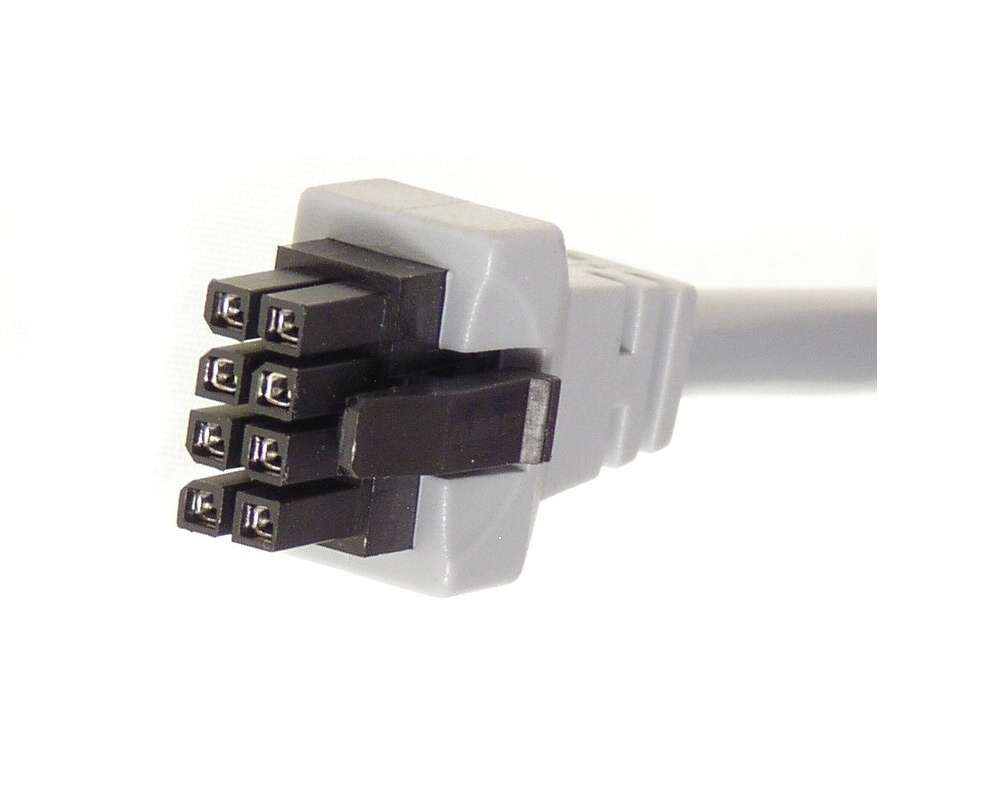

See the type of plug in the photo.

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Keypad without overlay : 55391-01, 55391-02, 55391-03, 55391-04
Marquis Spas : 650-0665

Documentation
