Gecko TSC-25 / K-25 keypad for Dimension One

Gecko TSC-25 / K-25 keypad for Dimension One - Haga clic para ampliar
Gecko TSC-25 / K-25 keypad for Dimension One - Haga clic para ampliar
Gecko TSC-25 / K-25 keypad for Dimension One - Haga clic para ampliar

Due to recurring availability problems, we no longer offer the TSC-25 keypad.

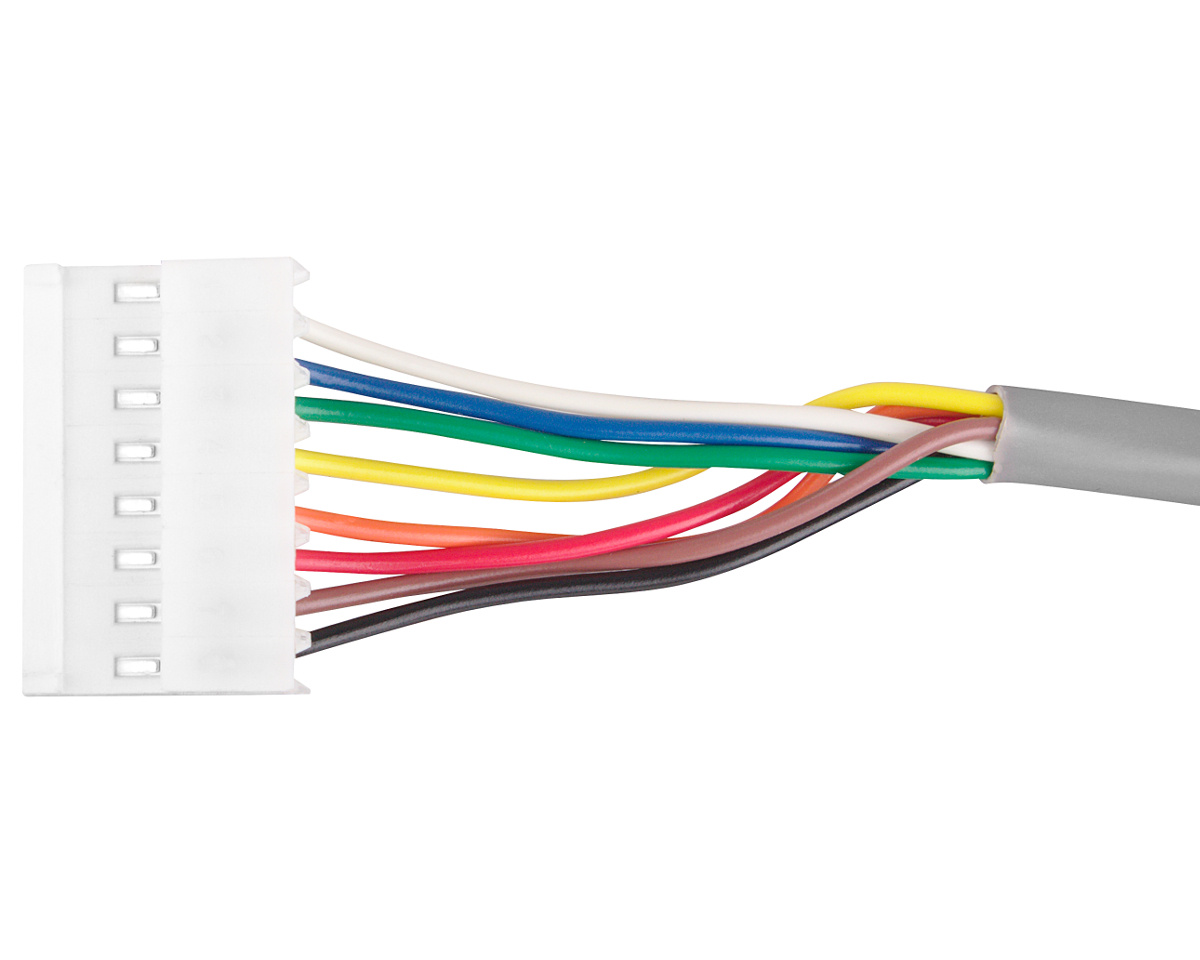

This TSC-25 keypad fits Dimension One spas. It is supplied with a 250 cm cable, and a 8-pin connector.

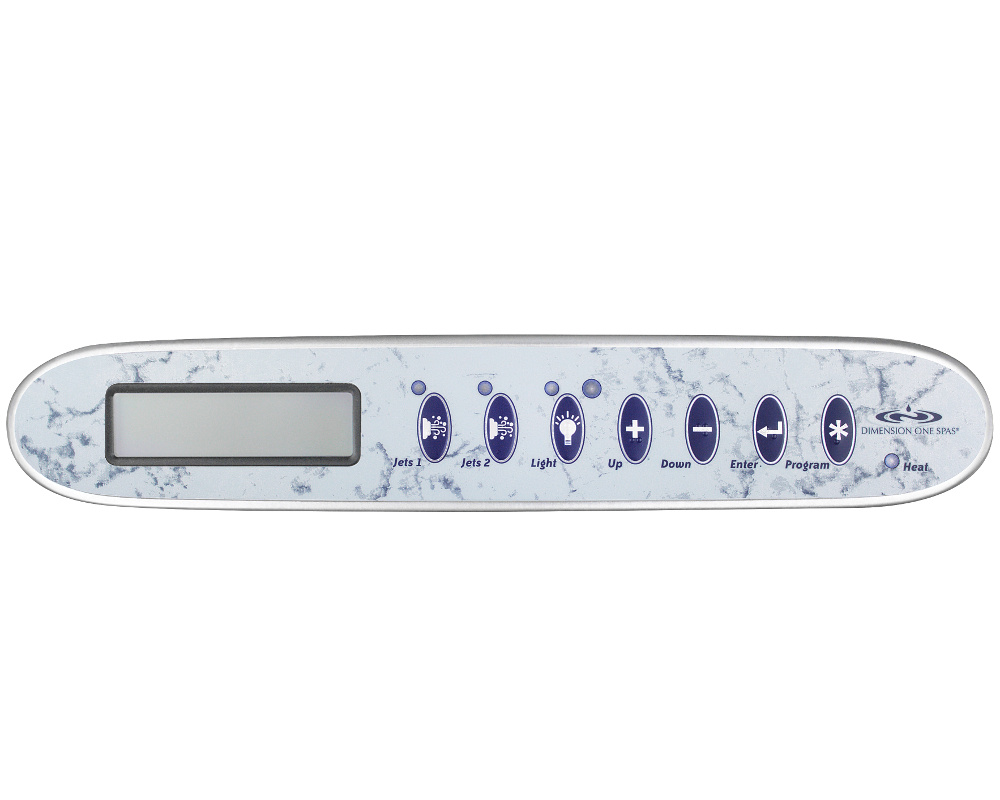

The keypad is supplied without its self-adhesive overlay (although the photo shows it with an overlay, as it is hard to recognise the part otherwise). Three overlays are available, depending on your hot tub configuration: with 5 buttons, 6 buttons or 7 buttons.

If you want to change the language, first press the Program key and then (while holding it down) press the Dimension One logo, which is also a hidden key. Hold both keys down for 20 seconds, and a menu will appear allowing you to change the display language, as well as other options.

Dimensions
Keypad: 340 x 60 mm
Cut out area: 310 x 37 mm

Part numbers
Dimension One: 01560-320
